210 Analog Bass Combo

Redefining Bass with Precision:

- Designed for ultimate sonic quality and portability, the M Combo Series defines excellence in analog bass tones and precision. Featuring custom-made Eminence® speakers and powered by an efficient 500-W class D power module, the M Combo Series are perfect for the musician demanding premium analog character across venues, rehearsals, and home setups.

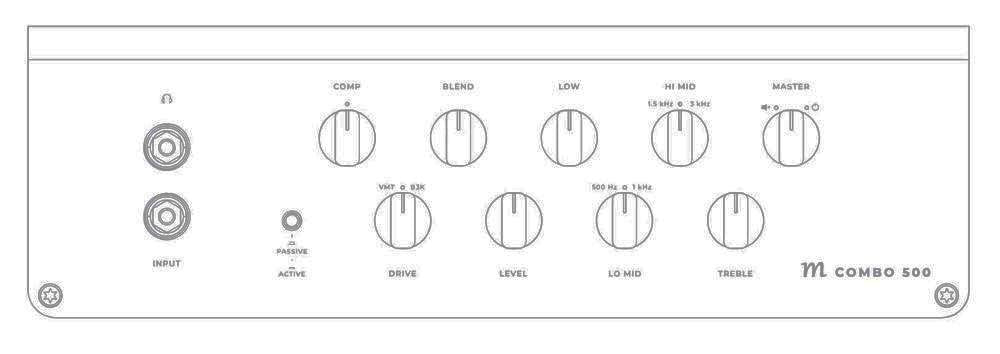

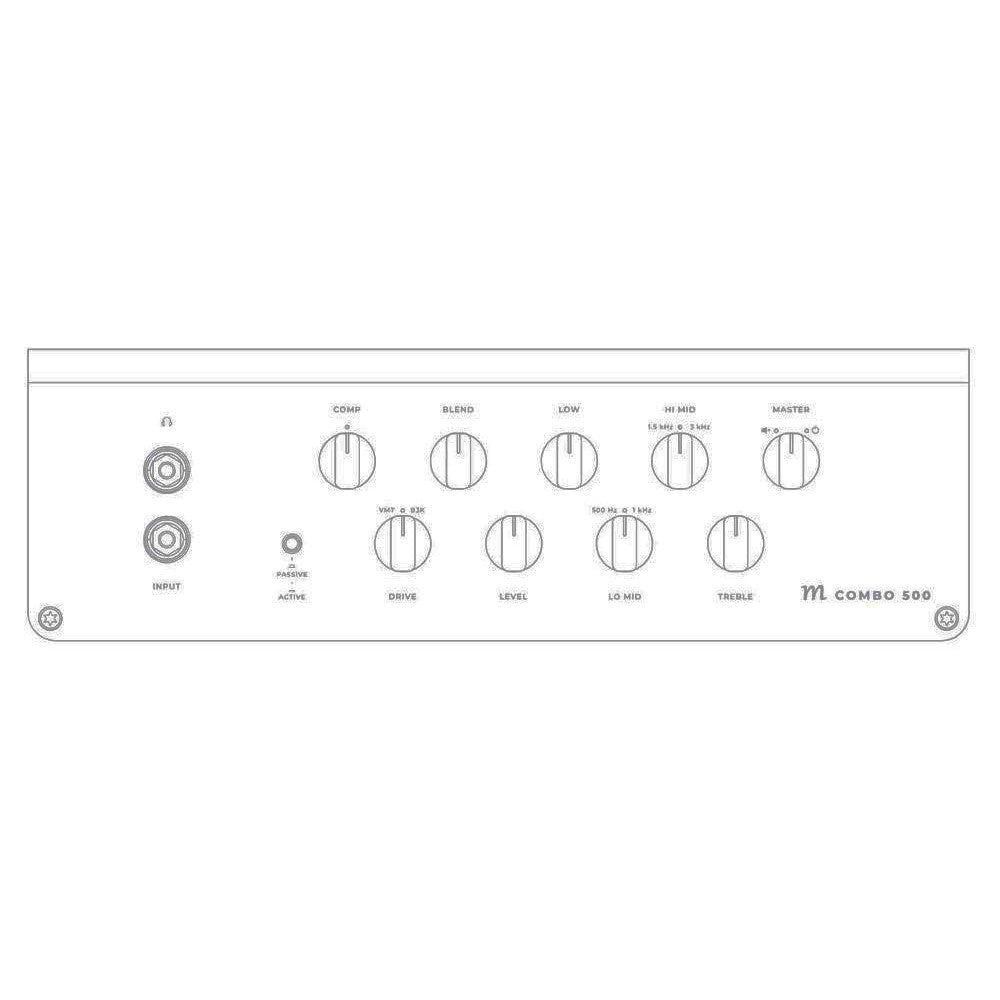

Top-Panel Features:

- Input: Use this jack to connect your instrument via a standard 1/4" mono cable

- Headphone Output: Connect your headphones and enjoy the analog cabinet emulation

- Passive/Active: Use this push-button switch to change from passive to active mode. If your bass is active it can have a hotter signal making the amp to distort early (feel free to use if such additional distortion is desired).

- Compression: Controls the amount of dynamic compression. The make-up gain is adjusted automatically.

- Drive: Controls the amount of distortion that the Microtubes Engine will deliver. Press to select the drive mode: Off / Vintage Microtubes / Microtubes B3K.

- Blend: Use this knob to mix between the clean signal and the distortion signal

- Level: Controls Microtubes Engine's output volume.

- Low: ±12 dB @ low shelf

- Low Mids: ±12 dB @ 500 Hz / 1 kHz | Press to select the frequency

- Hi Mids: ±12 dB @ 1.5 kHz / 3 kHz | Press to select the frequency

- Treble: ±12 dB @ high shelf

- Master: Use this knob to control the overall volume of the combo. Press for mute.

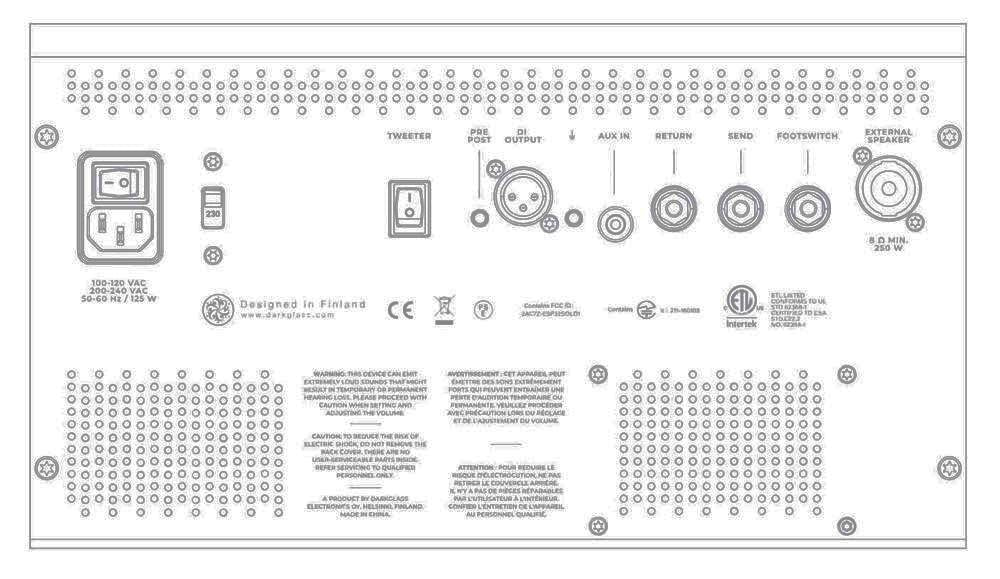

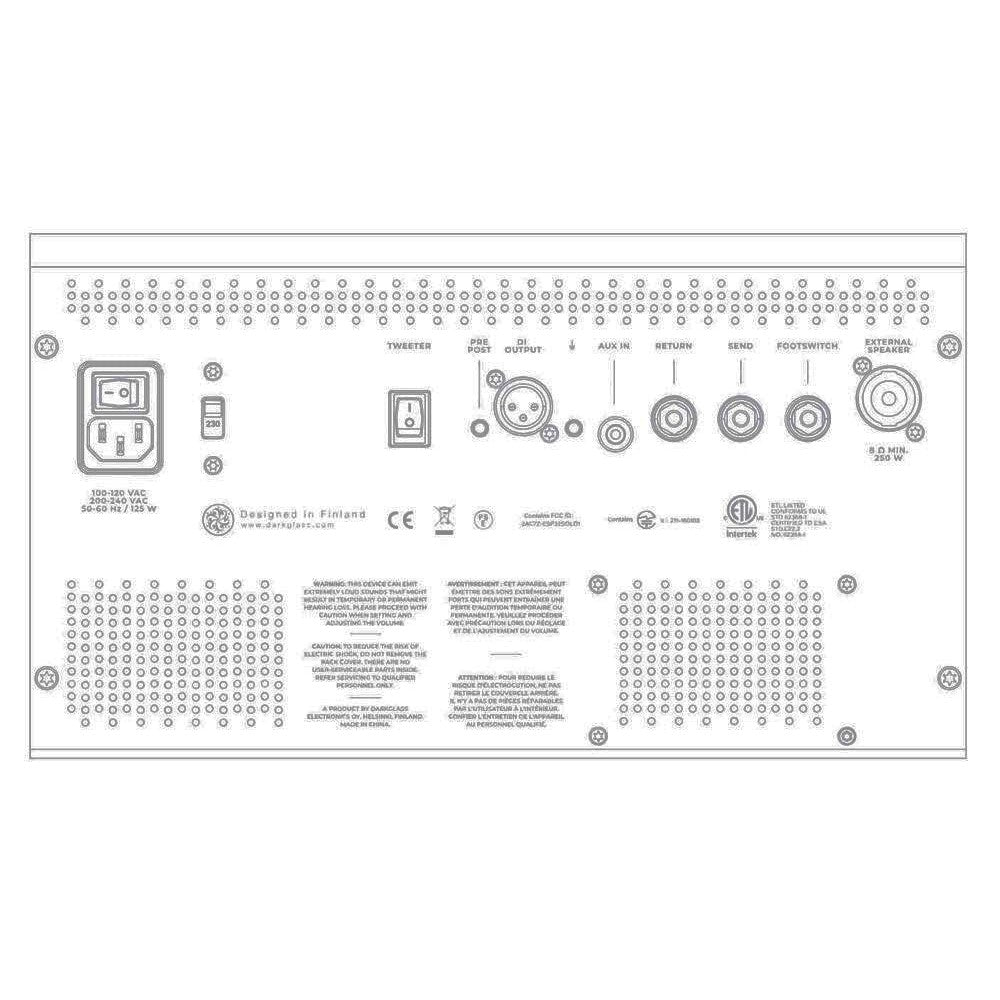

Back-Panel Features:

- AC Power On/Off: Power on the combo beast

- AC Socket: Use this connector to feed electric power to the amplifier. 100–230 VAC, 50-60 Hz. Set the voltage selector switch to the correct position before turning on the amplifier!

- Tweeter: Turn the tweeter on/off

- Pre/Post: Select between the unprocessed clean DI and the processed signal

- DI Output: Use this connector to send your signal to the console, mic preamp, interface, etc.

- Ground Lift: Use this control to lift the ground of the XLR output. If you are experiencing ground noise in your DI signal, try changing this control.

- Aux In: Connect this to the headphone output of your laptop, cellphone, MP3 player, etc. The Aux In signal is fed only to the headphone output.

- Return: Use this input to receive the signal from your outboard gear

- Send: Use this output to send the signal to your outboard gear

- Footswitch: Use to connect the Darkglass Super Intelligent Footswitch or MIDI footswitch using a 1/4" mono instrument cable

- External Speaker: Use this connector to connect the amplifier to an external speaker cabinet. The SpeakON combo jack allows for SpeakON or 1/4" speaker cable operation. The minimum load impedance is 8 Ohms. The minimum power rating must be 250 W | Warning: Do not use an instrument cable with this jack. Using an instrument cable can damage your amplifier.

Technicals details:

- Woofers: Custom-Design Eminence® Speaker

- Horn: Eminence® Tweeter

- Cabinet Material: Balsa Wood

- Power Rating RMS: 500 W

- Dimensions (W x D x H): 46.5 cm x 61.1 cm x 39.5 cm | 18.3" x 24" x 15.55"

- Weight: 17.3 kg | 38.13 lb

* Warning: This device can emit extremely loud sounds that might result in temporary or permanent hearing loss. Please proceed with caution when setting and adjusting the volume.
