Specs:

- Neck Type: PSM / Maple Neck

- Top / Back / Body: Poplar Body

- Fretboard: Bound Purpleheart Fretboard / White Block Inlay

- Fret: Medium Frets

- Number of Frets: 22

- Bridge: Gibraltar Performer Bridge

- String Space: 10.5 mm

- Tailpiece: Quik Change III Tailpiece

- Neck Pickup: Infinity R (H) Neck Pickup (Passive/Ceramic)

- Bridge Pickup: Infinity R (H) Bridge Pickup (Passive/Ceramic)

- Factory Tuning: 1E, 2B, 3G, 4D, 5A, 6E

- String Gauge: 0.010 / 0.013 / 0.017 / 0.026 / 0.036 / 0.046

- Hardware Color: Chrome

Neck Dimensions:

- Scale: 564 mm / 22.2"

- Width at Nut: 41 mm

- Width at 22nd Fret: 56 mm

- Thickness at 1st Fret: 19.5 mm

- Thickness at 12th Fret: 21.5 mm

- Fingerboard Radius: 305 mmR

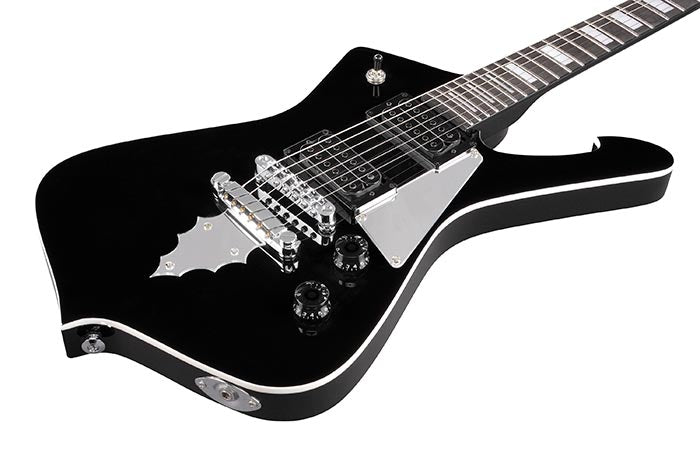

Controls:

- With the guitar held in the playing position, the knob closest to the edge of the body is the tone knob. The knob closest to the neck is the volume knob. The pickup selector switch is located near the neck pickup.
