Engineered excellence

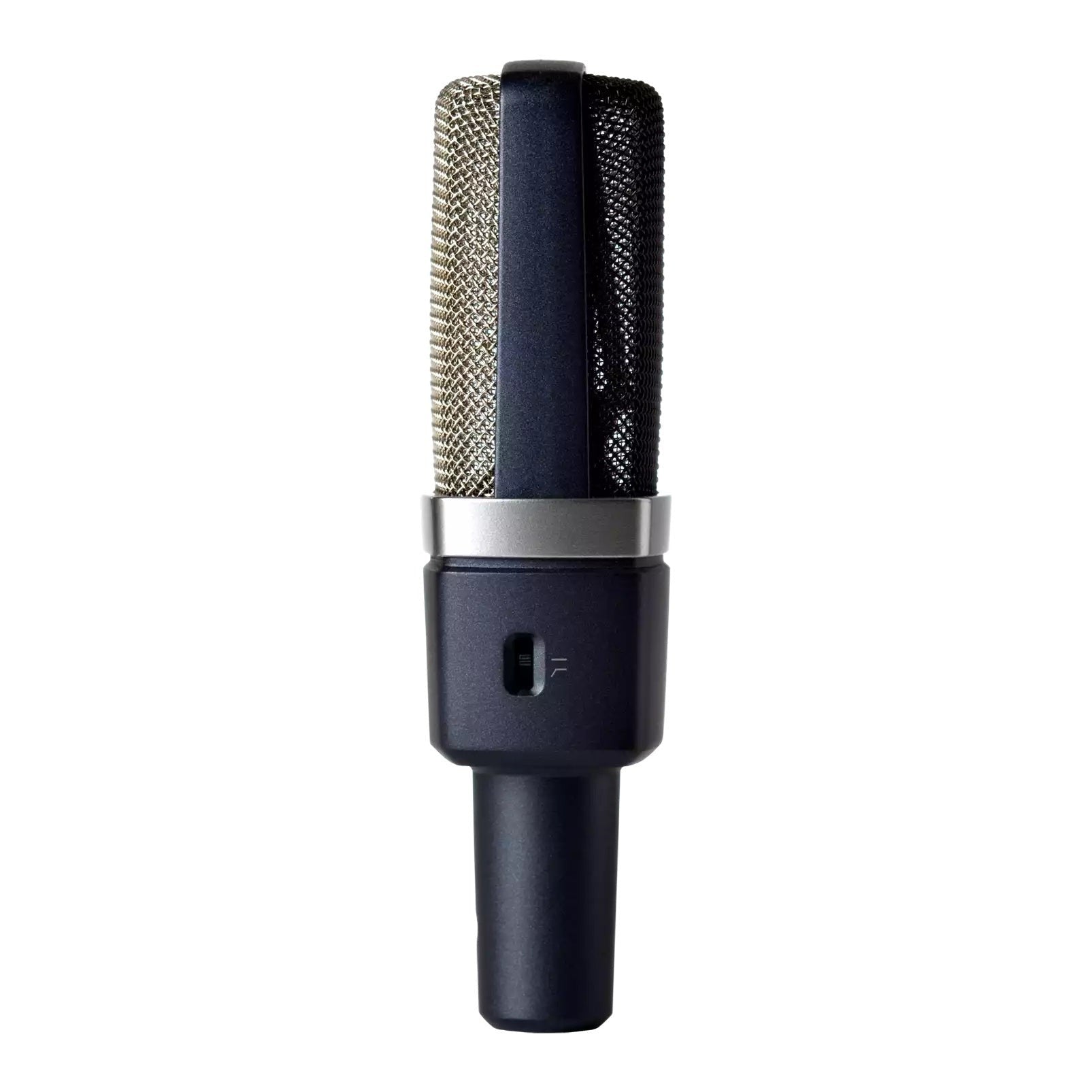

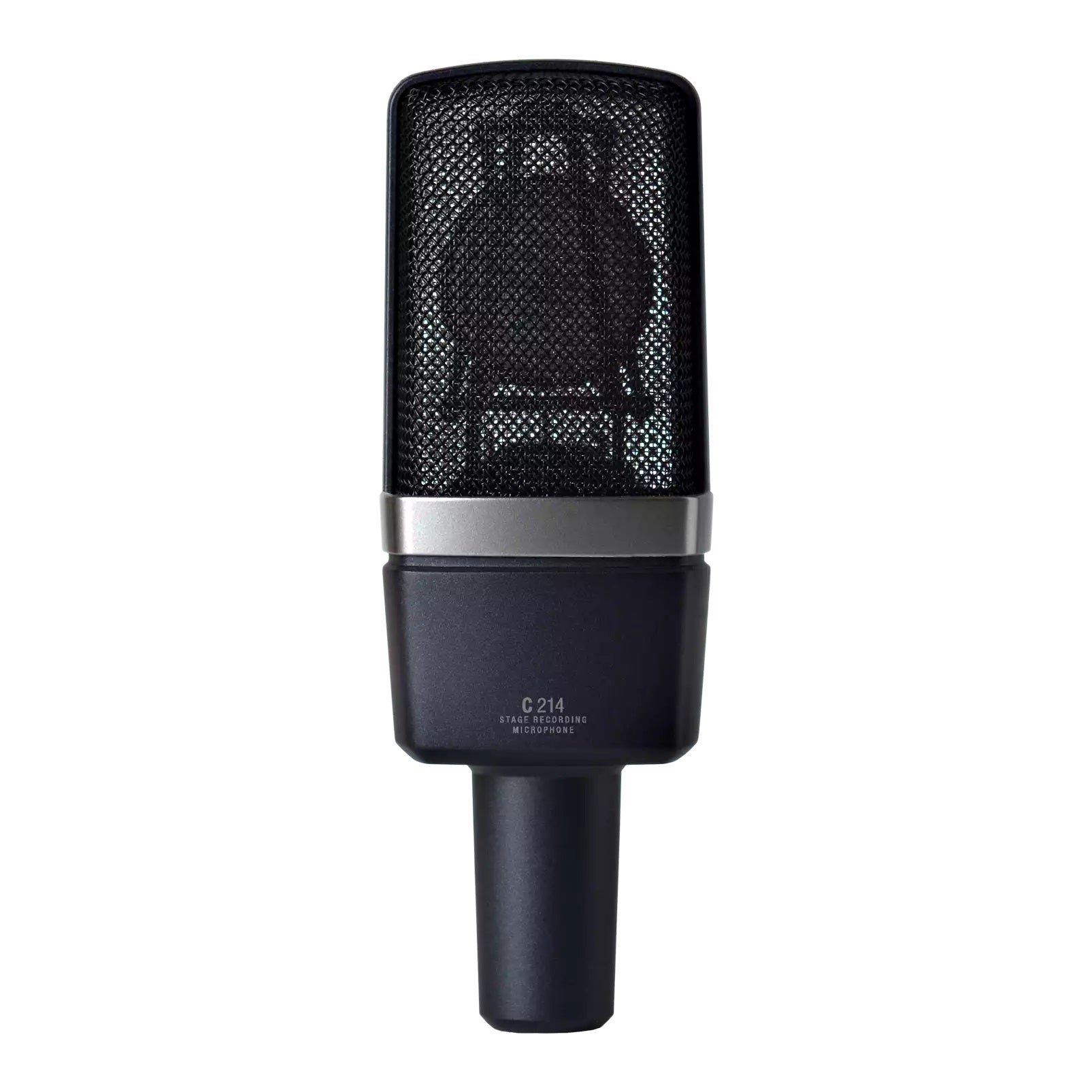

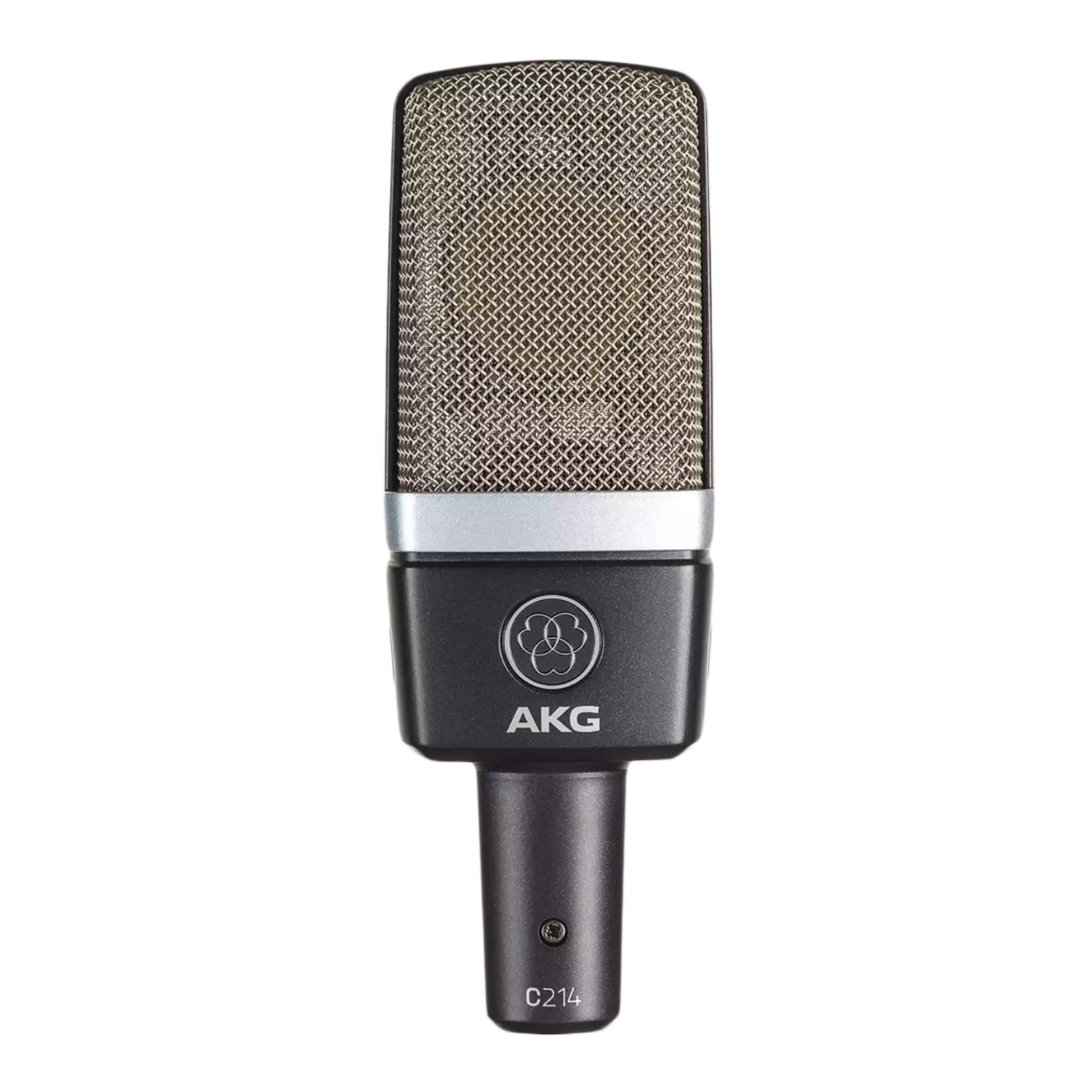

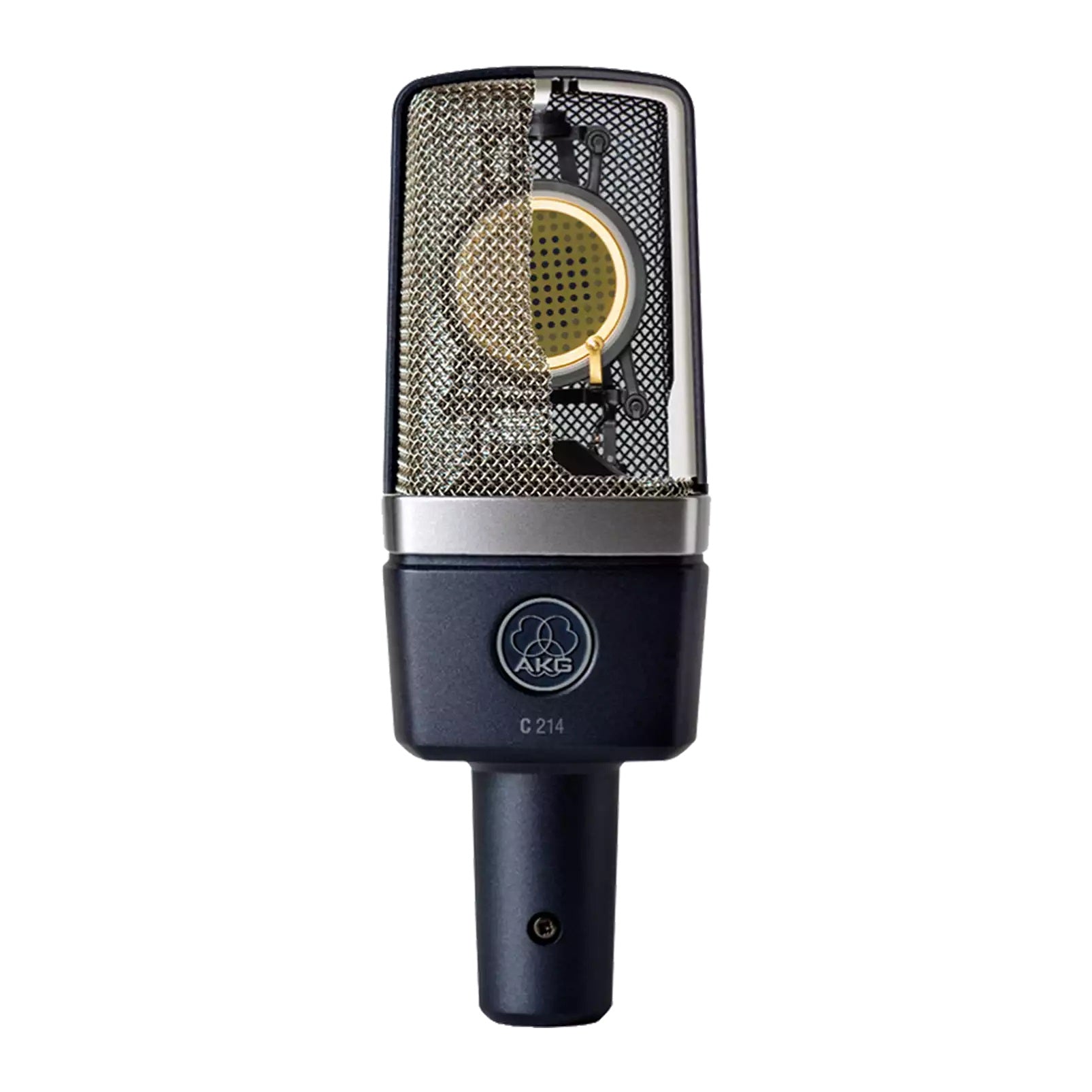

The C214 professional large-diaphragm condenser microphone has been designed as a cost-effective alternative to the high-end C414 family. Like the C414, the C214 offers a supreme one-inch capsule on an integrated suspension to reduce mechanical noise. A switchable 20dB attenuation pad allows recording of loud sources of up to 156dB SPL. A switchable bass-cut filter allows close-up recording with almost no proximity effect. The C214 captures sound by combining one capsule of the legendary C414 dual-capsule system and the patented AKG Back-Plate Technology, resulting in an outstanding performance close to the famous C414 XLII.



General: Specifications
Polar Pattern: Cardioid
Audio frequency bandwidth: 20 - 20000 Hz
Equivalent noise level: 13 dB-A
Sensitivity: 20 mV/Pa
Signal to Noise: 81 dB-A
Preattenuation Pad: -20 dB
Bass cut filter: 160 Hz
Electrical impedance: 200 Ohms
Recommended load impedance: 1000 Ohms

Dimensions
Width: 56 mm
Height: 160 mm
Net Weight: 280 g

Design
Finish: matte grayish blue

Audio Output
Type: Balanced XLR
Gender: Male
Contacts: 3-pin

Powering Interface
Voltage: 9 to 52 V
Current: 2 mA

Application
Pro Studio: Yes
Instrument
Vocals: Yes
Piano / Strings: Yes
Horns / Woodwinds: Yes
Drums / Percussion Yes
