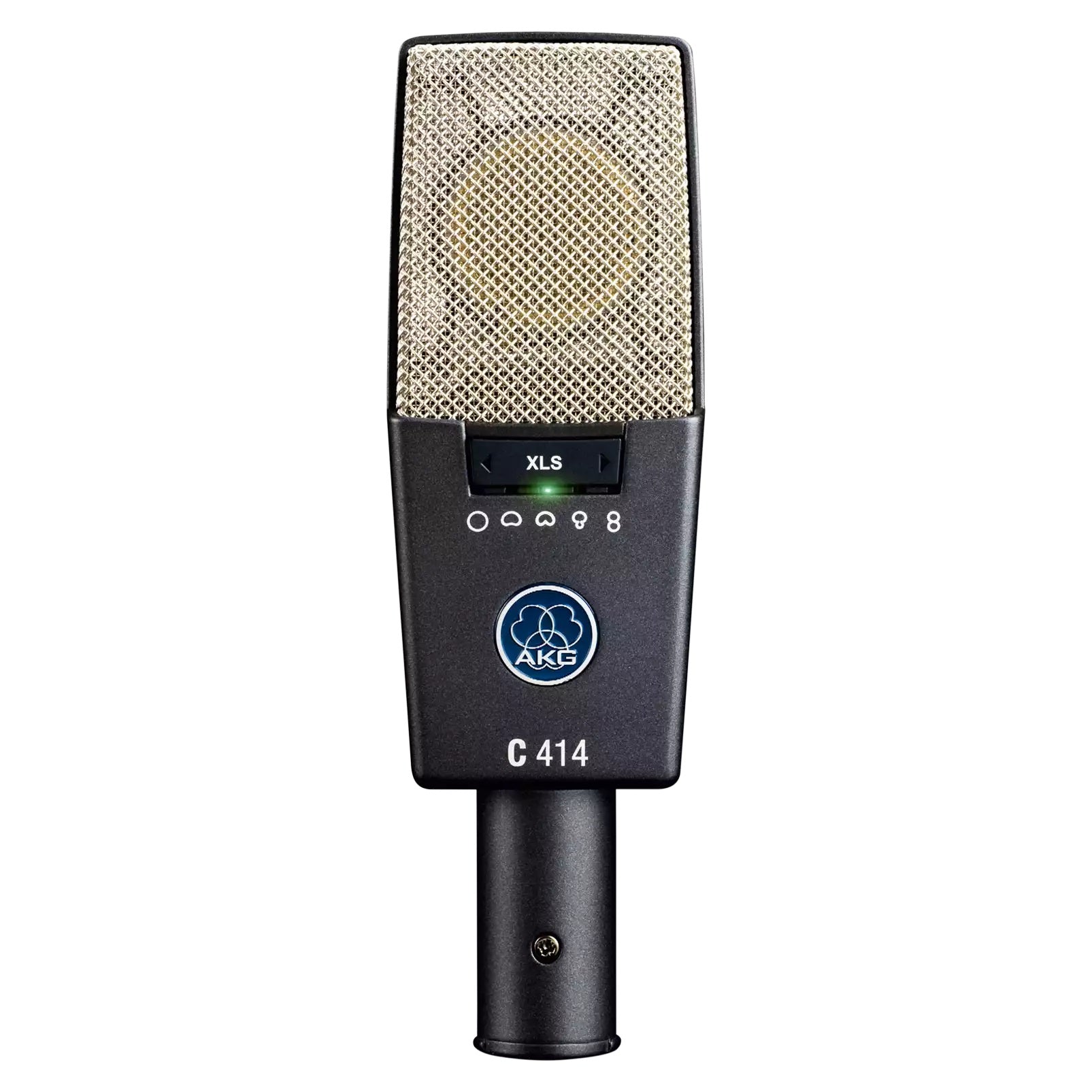

AKG - C414 XLS
Couldn't load pickup availability
Description
The C414 XLS multipattern condenser microphone offers a choice of nine polar patterns for the perfect sonic capture for every application. A peak hold LED displays even the shortest overload peaks. For live sound applications and permanent installations, all controls can easily be disabled for trouble-free use.
The C414 XLS maintains the sonic character of the legendary C414 B-ULS, the most popular AKG C414 version since 1971. Engineered for highest linearity and neutral sound, it has been the most versatile large-diaphragm microphone for decades.
General Specifications
Audio frequency bandwidth 20 - 20000 Hz
Equivalent noise level 6 dB-A
Sensitivity 23 mV/Pa
Signal to Noise 88 dB-A
Preattenuation Pad -6; -12; -18 dB
Bass cut filter 160; 80; 40 Hz
Electrical impedance 200 Ohms
Recommended load impedance 2200 Ohms
Polar Patterns Cardioid, Figure of eight, Hypercardioid, Omnidirectional, and Wide Cardioid
Dimensions
Length: 38 mm
Width: 50 mm
Height: 160 mm
Net Weight: 300 g
Design
Finish: dark gray/silver
Audio Output
Type: Balanced XLR
Gender: Male
Contacts: 3-pin
Powering Interface
Voltage: 44 to 52 V
Current: 4.5 mA
Application
Pro Studio: Yes
Instrument
Vocals: Yes
Piano / Strings: Yes
Horns / Woodwinds: Yes

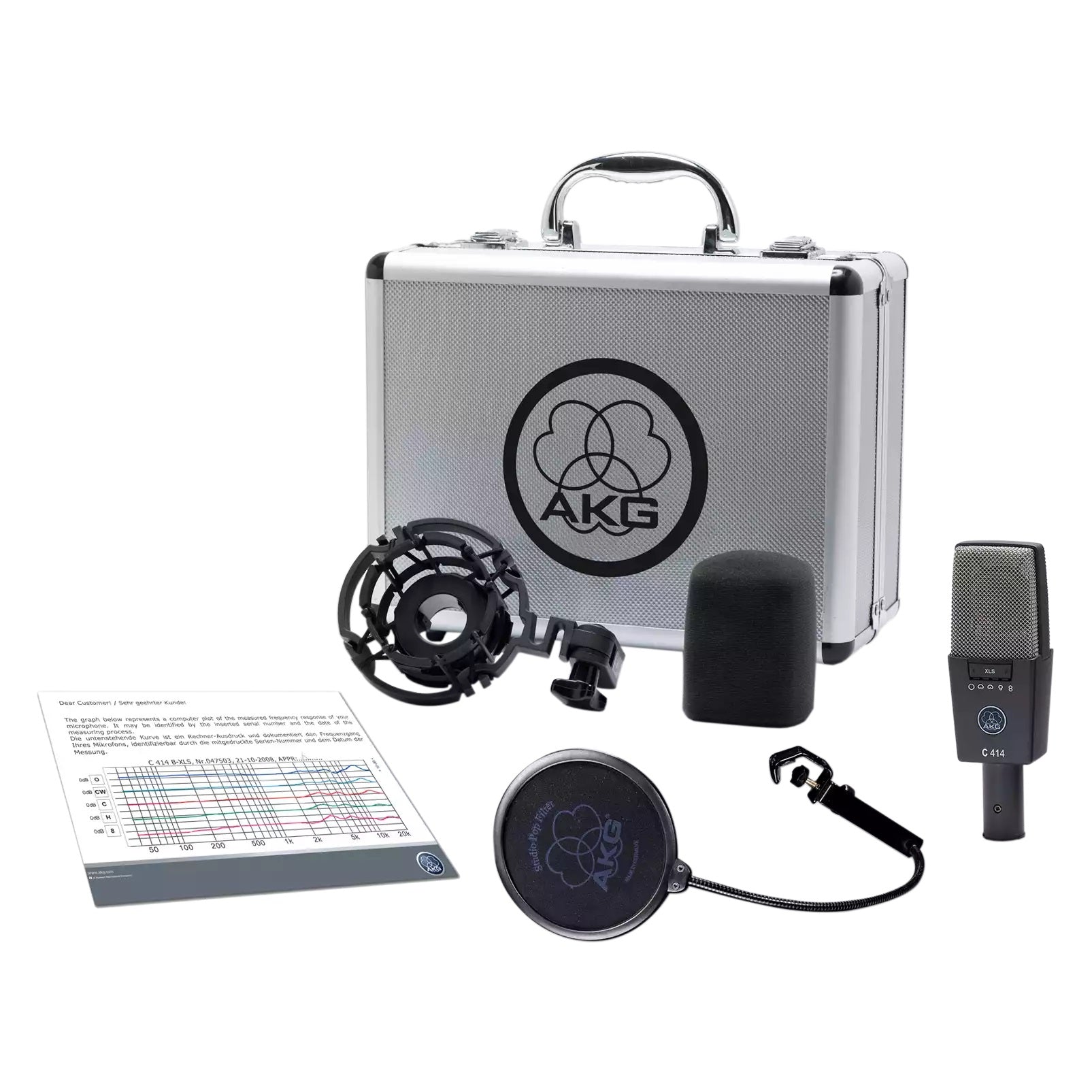

What's in the box?
1 x C414 XLS Microphone
1 x H85 Universal Shock Mount
1 x Metal Carrying Case
1 x PF80 Pop Filter
1 x W414 Windscreen C414
General Specifications
Audio frequency bandwidth 20 - 20000 Hz
Equivalent noise level 6 dB-A
Sensitivity 23 mV/Pa
Signal to Noise 88 dB-A
Preattenuation Pad -6; -12; -18 dB
Bass cut filter 160; 80; 40 Hz
Electrical impedance 200 Ohms
Recommended load impedance 2200 Ohms
Polar Patterns Cardioid, Figure of eight, Hypercardioid, Omnidirectional, and Wide Cardioid
Dimensions
Length 38 mm
Width 50 mm
Height 160 mm
Net Weight 300 g
Design
Finish dark gray/silver
Audio Output
Type Balanced XLR
Gender Male
Contacts 3-pin
Powering Interface
Voltage 44 to 52 V
Current 4.5 mA
Application
Pro Studio
Instrument
Vocals
Piano / Strings
Horns / Woodwinds
