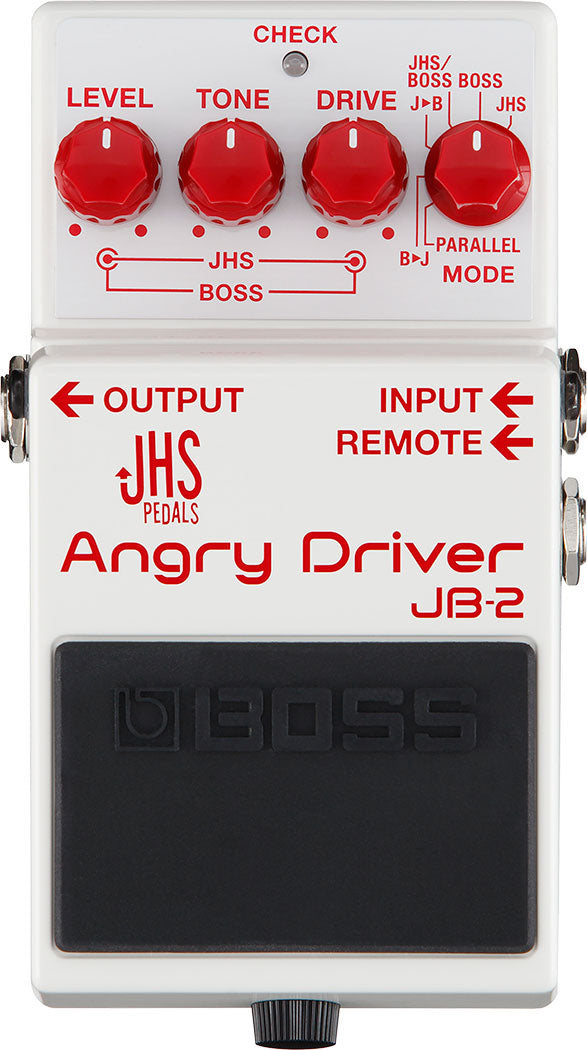

All-new overdrive pedal with massive tonal range, jointly developed by BOSS and JHS Pedals
Combines the voices of the BD-2 Blues Driver from BOSS and Angry Charlie from JHS Pedals
Three dual-concentric knobs provide independent drive, tone, and level control for each overdrive type
Mode selector for choosing individual overdrive types, two series connections for stacking, or parallel connection for unique new sounds
Also includes a mode for toggling between BOSS and JHS overdrives with the built-in pedal switch
Remote switch jack for controlling pedal modes and bypass from an optional footswitch or effects switching system
Multi-color LED indicator shows BOSS mode (blue), JHS mode (red), and both together (purple)
BOSS five-year warranty

SPECIFICATIONS
Nominal Input Level-20 dBuInput Impedance1 M ohmNominal Output Level-20 dBuOutput Impedance1 k ohmRecommended Load Impedance10 k ohms or greaterControlsPedal switch
MODE knob, DRIVE knob, TONE knob, LEVEL knobIndicatorCHECK indicator (Serves also as battery check indicator)ConnectorsINPUT jack, OUTPUT jack, REMOTE jack, AC adaptor jack (DC 9 V)Power SupplyAlkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22)
AC adaptor (sold separately)Current Draw50 mAExpected battery life under continuous useAlkaline: Approx. 9.5 hours
Carbon: Approx. 2.5 hours
* These figures will vary depending on the actual conditions of use.AccessoriesOwner's Manual, Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information") Alkaline battery (9 V, 6LR61)

SIZE
Width73 mm
2-7/8 inches
Depth129 mm
5-1/8 inches
Height59 mm
2-3/8 inches
