Fusion 5

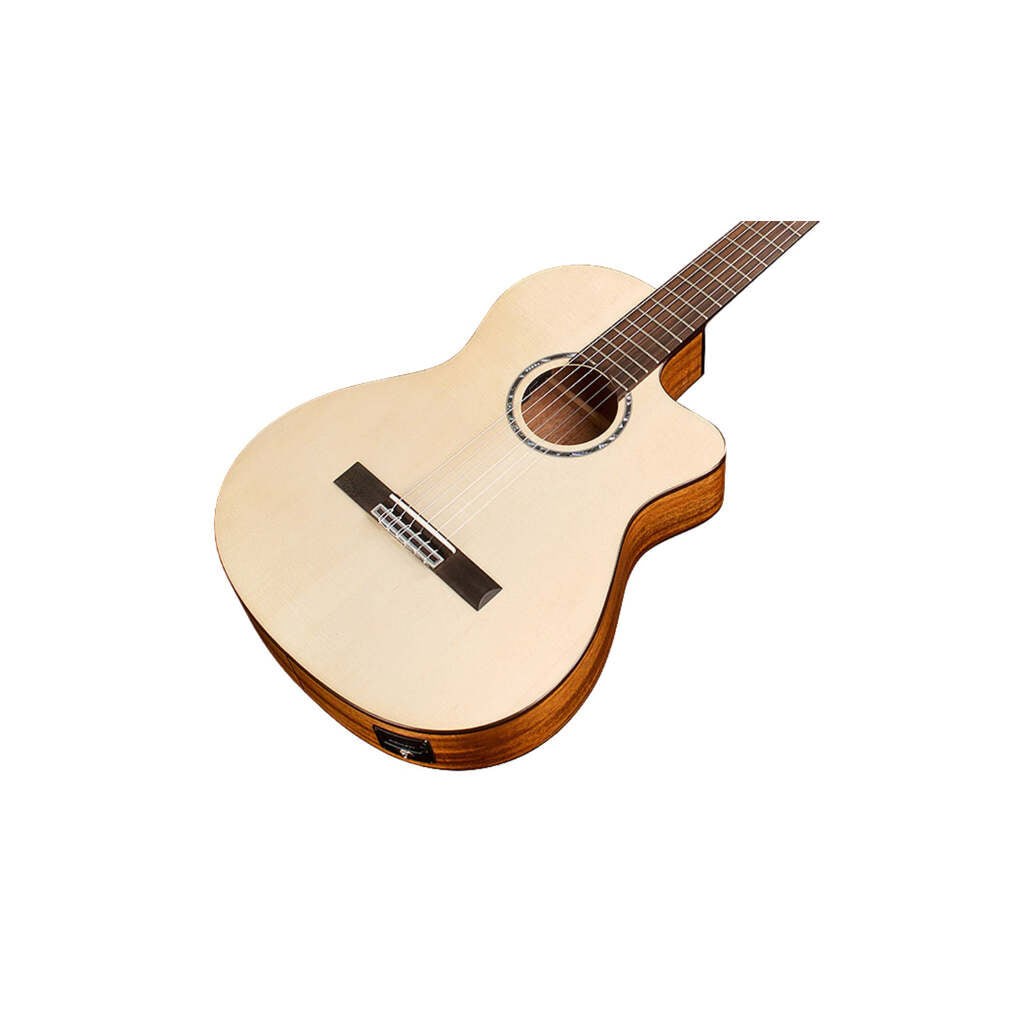

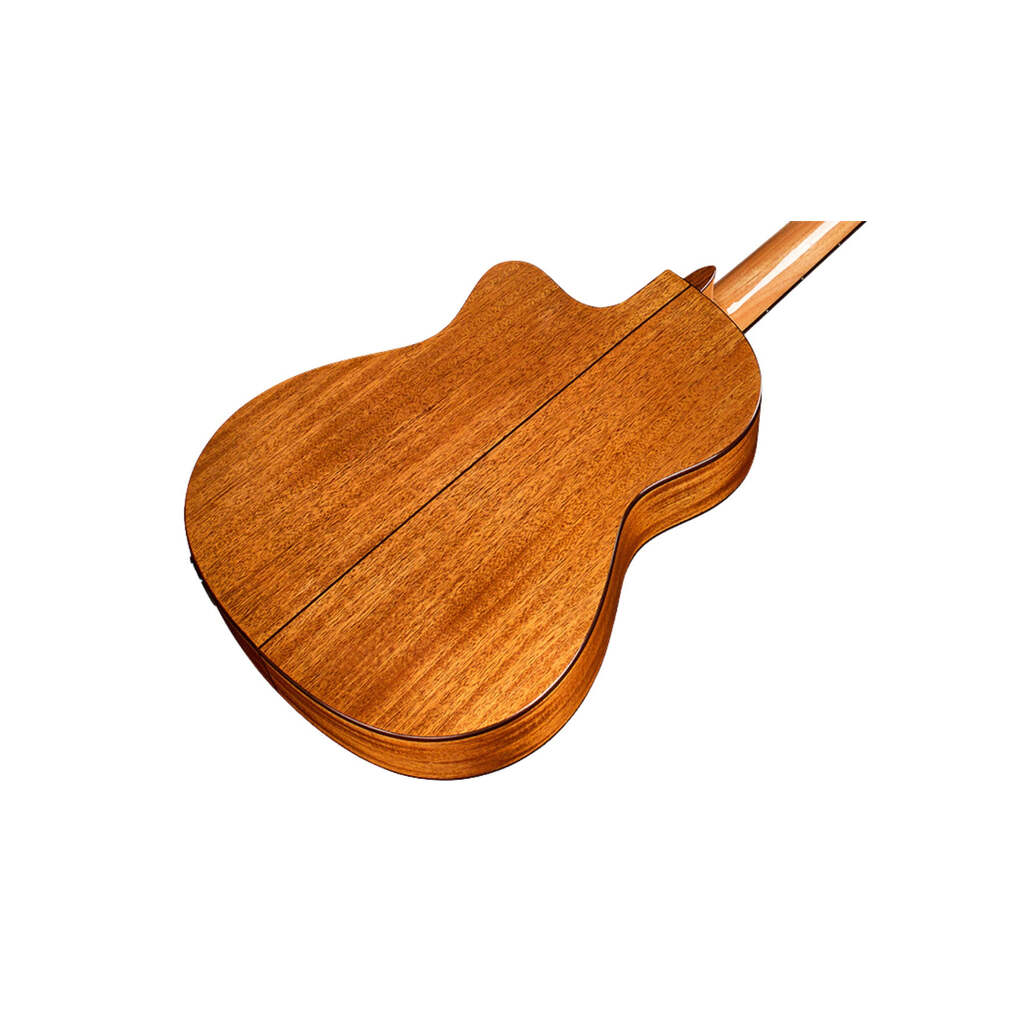

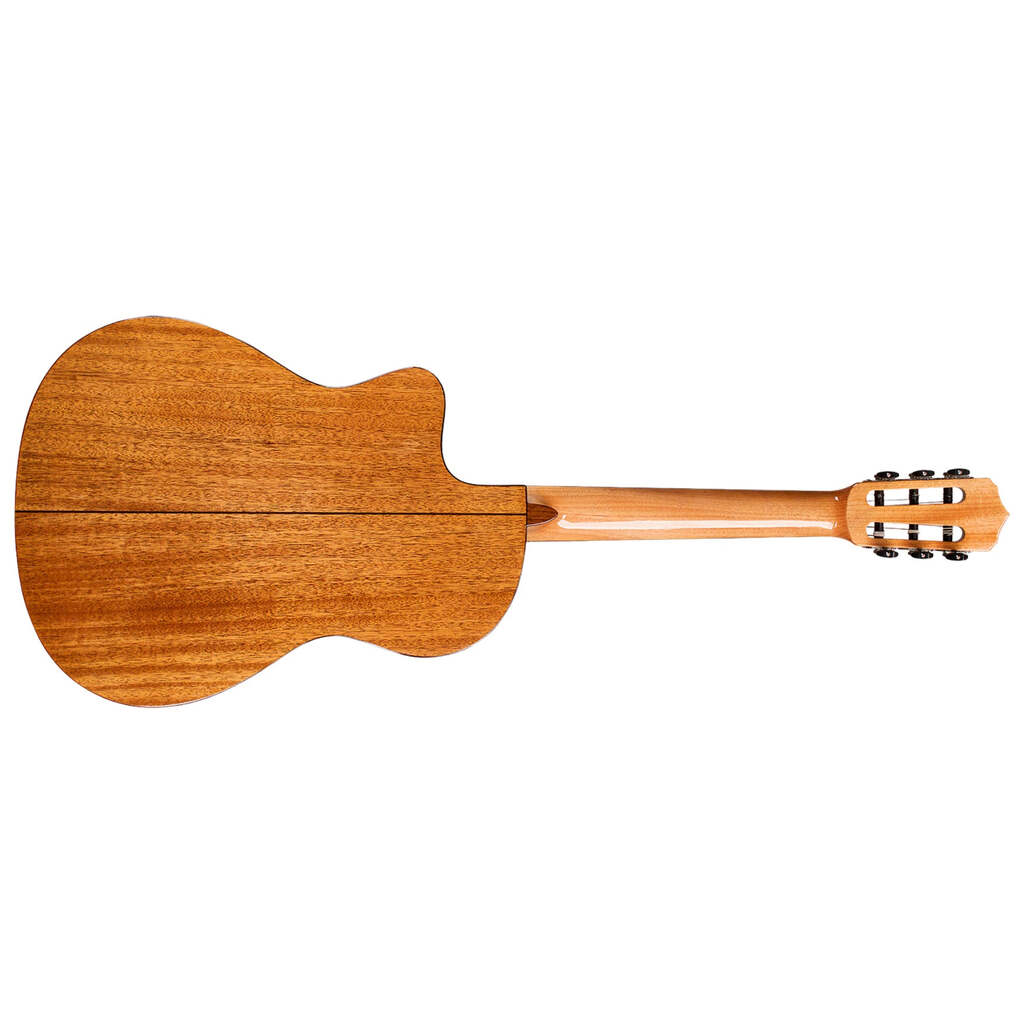

Córdoba’s entry into the fusion line! The perfect choice to transition from a steel string to a nylon guitar, the Córdoba Fusion 5 features a solid spruce top, mahogany back and sides, a full body with cutaway for extended playing range, side dot fret position markers, and a pearl decal rosette and arches. The fusion neck with a 16” radius fretboard and smaller, 1 7/8” (48mm) nut width provides a playing experience very close to that of a steel string guitar. This familiarity offers an easy transition for steel string players and players with smaller hands to the world of nylon string guitar. Added side dot markers also depart from traditional nylon string guitar construction, providing players reference for their position on the fretboard. Equipped with the Fishman Sonitone Pickup System, the Fusion 5 is ready to plug in and play. Available in Gloss Natural and Jet-Black finish with mahogany back and sides and Gloss Sonata Burst with elegant flamed mahogany back and sides.

Key Features

Family: Cutaway & Electric

Style: Fusion

Construction: Solid Top

SPECS:

psid 4

Tuning Machine Ratio 14:1

Neck Construction Traditional 3 Piece Neck

Neck Joint Dovetail

Frets to Body 12

pcid 1

Headplate Composite

Headstock Logo Cordoba Arches Logo - Pearl Style Decal

Tuning Machines Vendor & Model Der Jung DJ216GK-A1W (S2)

Tuning Machine Buttons Black

Back Binding Composite

Electronics Vendor & Model Fishman OEM-SON-CL4

Pickup Type Undersaddle Piezo, Onboard Tuner

Middle Pickup None

Battery Pack Fishman Combination Battery Box/Output Jack - 9V

Battery Pack Installation Location Lower Bout Treble Side

Waist Width 248mm (9 3/4")

Number of Strings 6

Back Purfling Inlay Pattern & Dimensions N / A

Tuning E-A-D-G-B-E

Back Bracing Ladder Bracing

Soundboard Thickness 2.8 - 3.0 mm

Top Purfling Pattern & Dimensions N / A

Exclusive to N / A

Individual Carton Dimensions 104 x 47 x 14

Side Purfling Inlay Pattern & Dimensions N / A

Back Center Strip Composite

Family Cutaway & Electric

Build Fusion

Construction Solid Top

Body Top Solid Spruce

Top Bracing Pattern Fan

Soundhole Diameter 84mm (3 1/3")

Rosette Pearl Style Decal

Top Binding Composite

Side Purfling Inlay N / A

Back and Sides Wood Mahogany

Back Purfling Inlay N / A

Neck Material Mahogany

Scale Length 650mm (25.6")

Neck Shape C Shape

Nut Width 48mm (1 7/8")

Neck Thickness 1st Fret 21mm

Neck Thickness 9th Fret 24mm

Truss Rod Dual Action

Truss Rod Wrench 4mm Allen Key

Fingerboard Material Pau Ferro

Fingerboard Inlays N / A

Frets Total 19

Color Natural (NAT)

Finish Gloss Polyurethane

Bridge Material Pau Ferro

Saddle Material Bone

Nut Material Bone

Tuning Machines Cordoba Silver with Black Buttons

Tap Plate N / A

Electronics Fishman Sonitone Classical

Strings Savarez Cristal Corum High Tension 500CJ

Upper Bout Width 292mm (11 1/2")

Lower Bout Width 371mm (14 5/8")

Body Depth Upper Bout 95mm (3 3/4")

Body Depth Lower Bout 100mm (4")

Body Length 489mm (19 1/4")

Overall Length 984mm (38 3/4")

Country of Origin China
