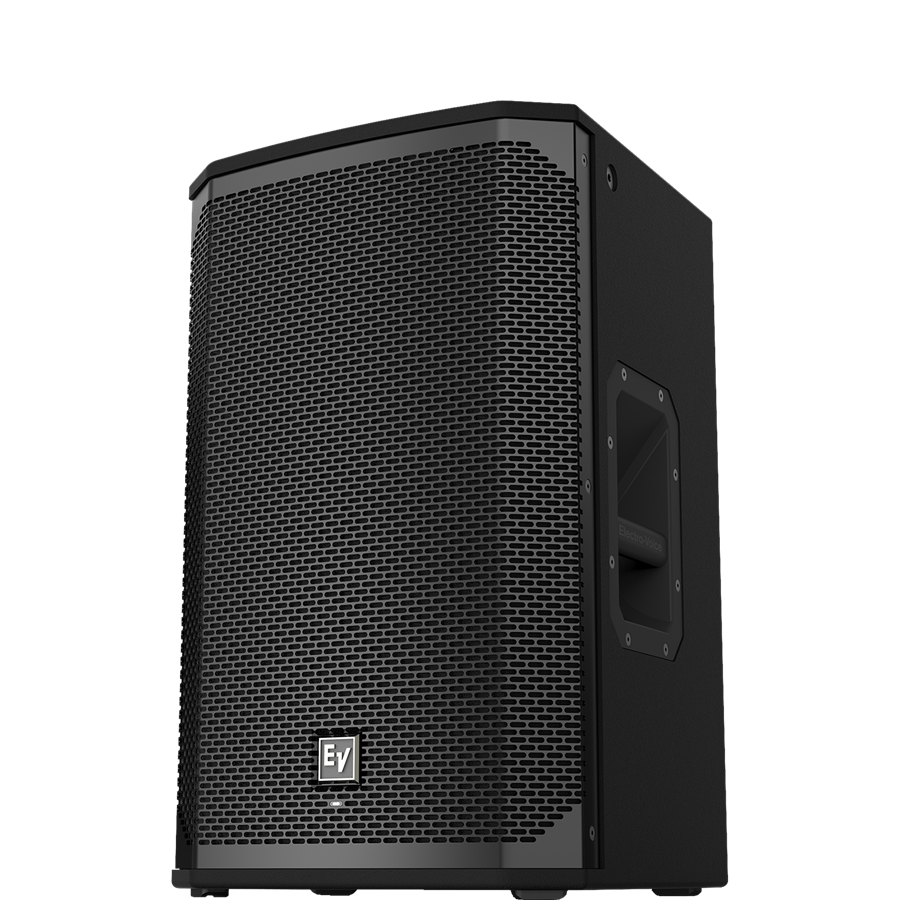

QuickSmartDSP features best-in-class processing, EV?s signature single-knob user interface, and intuitive menu navigation via LCD. High-efficiency 1500 W Class D power amplifier delivers up to 132 dB peak SPL on the EKX-12P via high-sensitivity transducers designed and engineered by EV. Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions. EV-patented Signal Synchronized Transducers? (SST) waveguide design provides precise and consistent coverage. Lightweight, compact 15-mm wood enclosure with internal bracing, durable EVCoat finish, eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles. Specifications Connector Type (1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output Coverage (Nominal -6 dB) H 90 ? Coverage (Nominal -6 dB) V 60 ? Crossover Frequency 1.7 k Hz Enclosure Material 15 mm, plywood with EVCoat Frequency Response (-10 dB) 50 Hz - 20 kHz Hz Full space measurement using the music DSP preset. Frequency Response (-3 dB) 60 Hz - 18 kHz Hz Full space measurement using the music DSP preset. Grill 18 AWG steel with powdercoat HF Transducer DH-1M 1-inch titanium compression driver LF Transducer EVS-12M 300 mm (12 in) Maximum SPL 132 dB dB Maximum SPL is measured at 1 m using broadband pink noise at maximum output. Power Consumption 1.8 A Current rating is 1/8 power Power Rating 1500 W Suspension (8) M10 threaded mounting points Height 14RU 607 mm (23.9") Width 375 mm (14.76") Depth 356 mm (14.02") Weight Net 18.8 kg (41.45 lbs)

EVKX06033017
