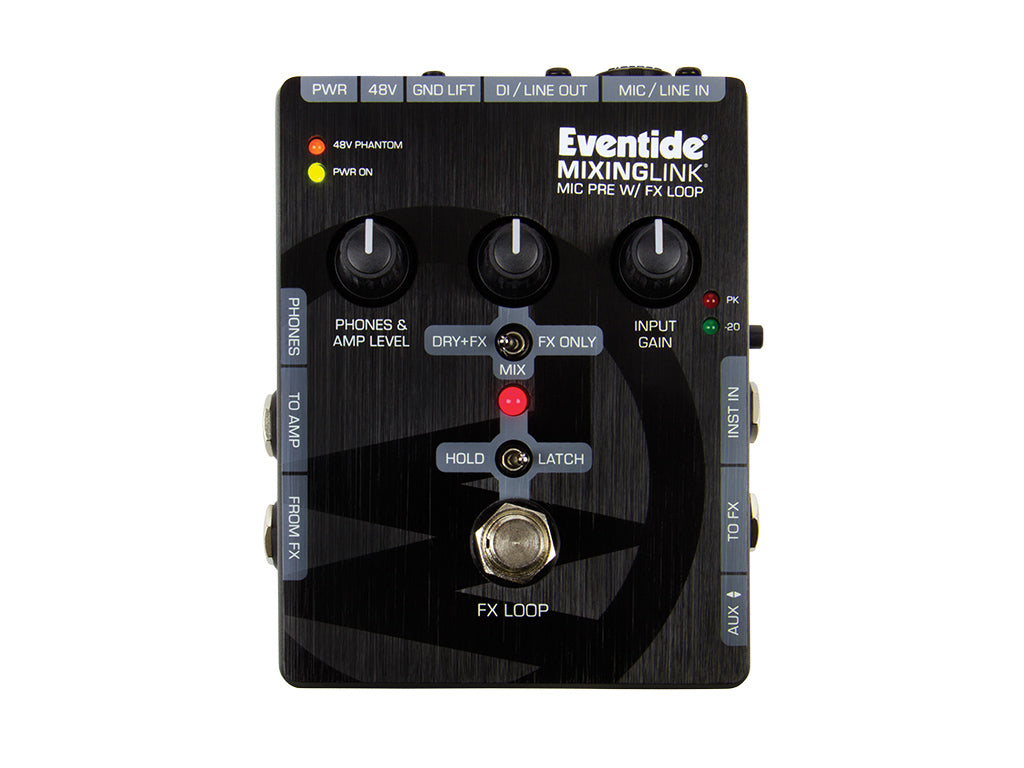

Features

FX loop send and return supports balanced and unbalanced signals - interfaces with consoles or guitar pedals easily

Latching or momentary footswitch control of FX loop for performance effects
Works with a wide range of microphones including condenser and ribbon mics with up to 65dB of clean gain
Aux I/O connection supporting stereo input and send
Guitar amp output and headphone monitor output with separate master volume control

Specifications

Input
Analog Input MAX Input Levels, Input Impedance
INST IN +10dBu, 500kΩ
1/4" Line IN +24dBu, 22kΩ
XLR Mic IN +4dBu, 2kΩ
FROM FX +10dB, 200kΩ
AUX IN +4dBu, 5.0kΩ
Output
Analog Output MAX Output Levels, Output Impedance
TO FX +10dBu, 400Ω
TO AMP +10dBu, 250Ω
PHONES 150mW per channel, min Load = 8 Ohms
DI/LINE OUT (DI) -10dBu, (LINE) +18dBu, 200Ω
AUX OUT 18mV, 200Ω (mobile mic level)
Physical
Power Supply 9 VDC, 500 ma, center pin (-)
Min. required current at 9VDC = 200mA
Dimensions English: 3.6” (H) x 2.65” (W) x 1.5” (D)
Metric: 91(H) x 67(W) x 38(D) mm
