Focusrite - Scarlett Octopre
Couldn't load pickup availability
Description

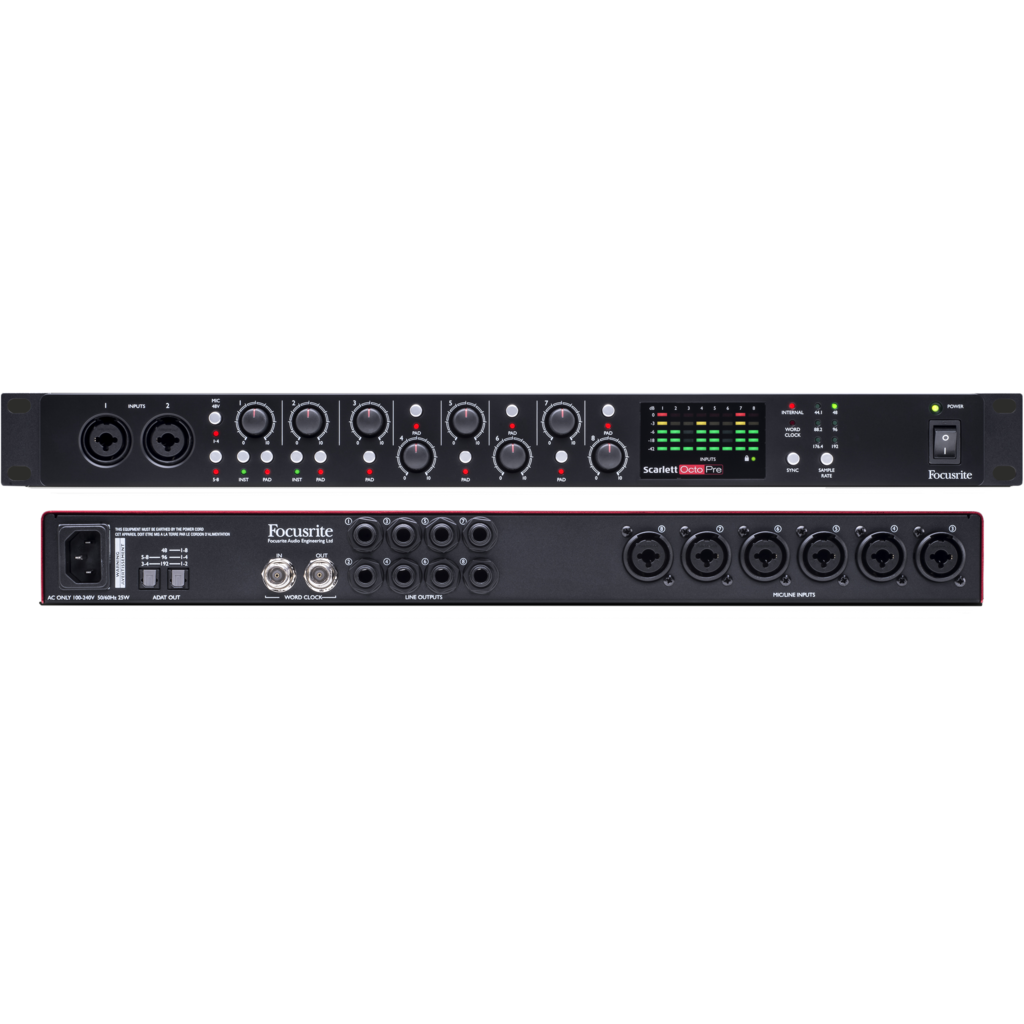

8-channel mic preamp with ADAT connectivity
Tech Spec
Supported Sample Rates
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Microphone Inputs
Frequency Response |
20Hz - 20kHz +0.5/-1.5dB |
Dynamic Range |
109 dB (A-Weighted) |
THD+N |
<0.001% |
Noise EIN |
-127 dBu |
Maximum input level (without pad) |
+8 dBu |
Maximum input level (with pad) |
+16 dBu |
Gain Range |
50 dB |
Input Impedance |
3 kOhm |
Line Inputs
Frequency Response |
20Hz - 20kHz +0.5/-1.5dB |
Dynamic Range |
109 dB (A-Weighted) |
THD+N |
<0.002% |
Maximum input level |
+22 dBu |
Gain Range |
50 dB |
Input Impedance |
49 kOhm |
Instrument Inputs
Frequency Response |
20Hz - 20kHz +0.5/-1.5dB |
Dynamic Range |
108 dB (A-Weighted) |
THD+N |
<0.01% |
Maximum input level |
+13 dBu |
Gain Range |
50 dB |
Input Impedance |
1 MOhm |
Line Outputs
Maximum Output Level (0 dBFS) |
+16dBu @ 0dBFS, or >21dBu where ADAT output is not used |
THD+N |
<0.001% |
Ouput Impedance |
136 Ohm (Balanced) |
FOP30092017
