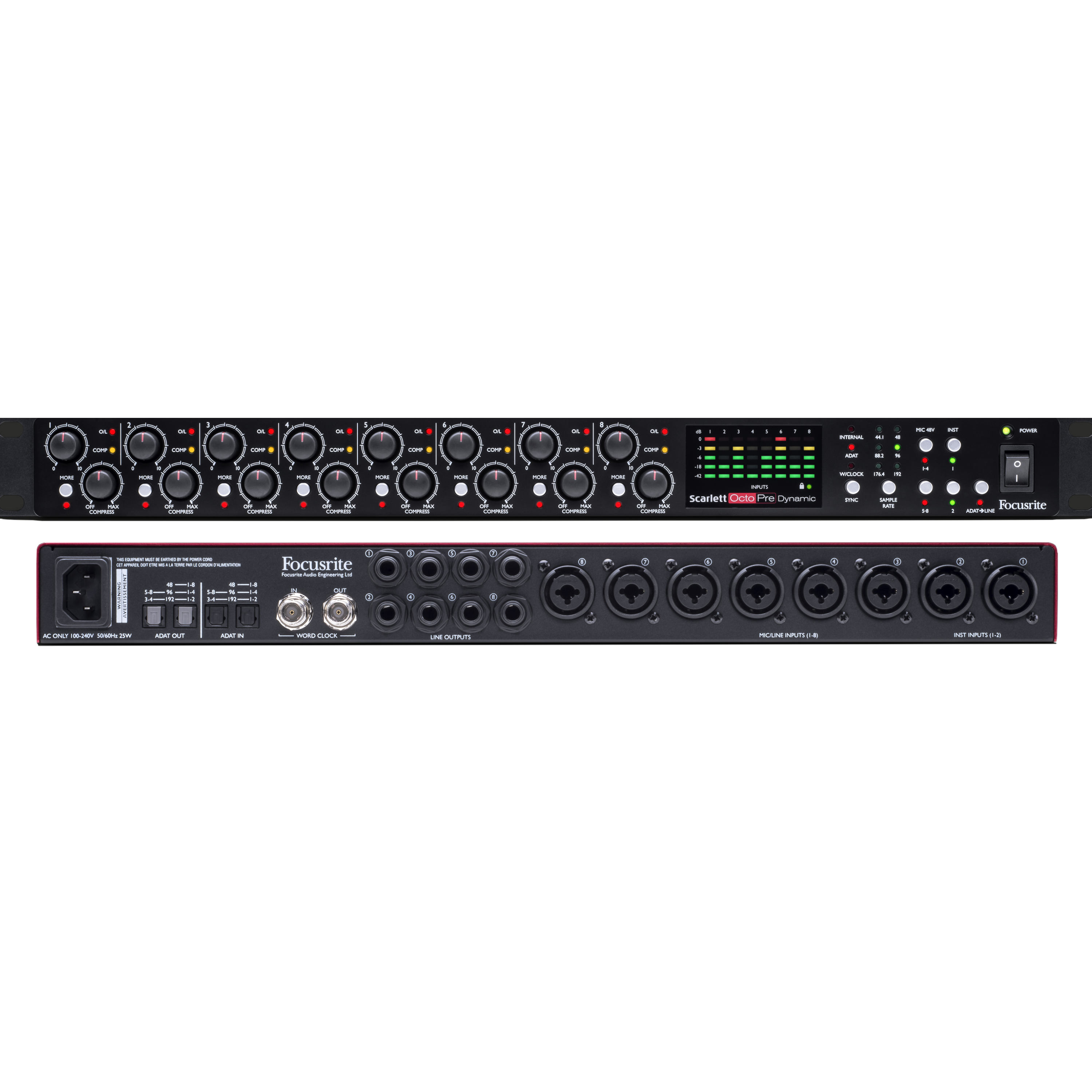

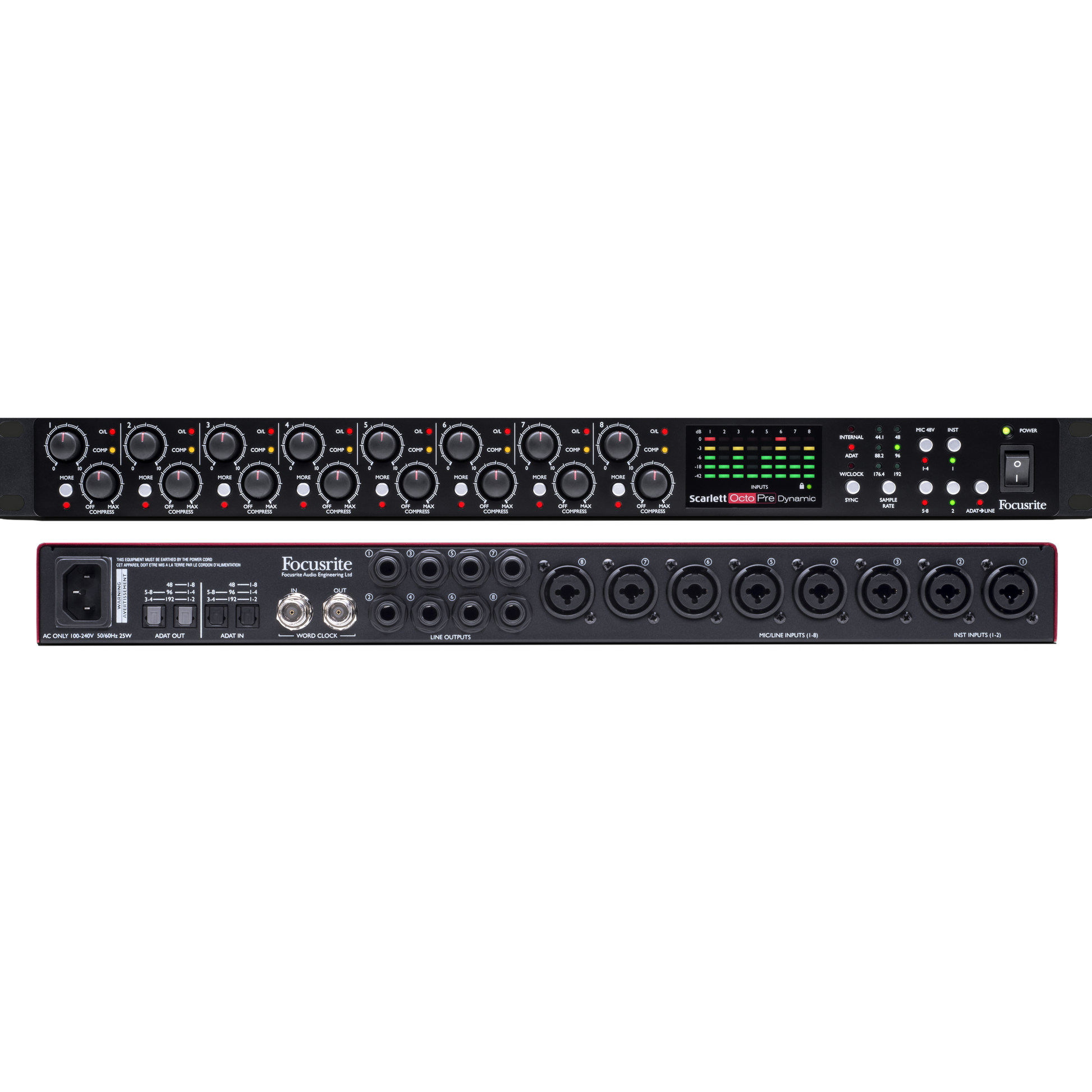

Focusrite - Scarlett Octopre Dynamic
Couldn't load pickup availability
Description
8 channel mic pre with A-D/D-A conversion & analogue compression
Eight channels of Focusrite precision A-D will capture your performance with clarity, honesty and transparency and providing you have an ADAT output on your interface, eight channels of D-A get it back out again via the balanced line outputs. With dual ADAT optical inputs and outputs, it's ideal for expanding your studio's I/O.
Tech Spec
Supported Sample Rates
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Microphone Inputs
Frequency Response |
20Hz - 20kHz +0.5/-1.5dB |
Dynamic Range |
107 dB (A-Weighted) |
THD+N |
<0.002% |
Noise EIN |
-127 dBu |
Maximum input level |
+13 dBu |
Gain Range |
50 dB |
Input Impedance |
3 kOhm |
Line Inputs
Frequency Response |
20Hz - 20kHz +0.5/-1.5dB |
Dynamic Range |
107 dB (A-Weighted) |
THD+N |
<0.002% |
Maximum input level |
+21 dBu |
Gain Range |
50 dB |
Input Impedance |
64 kOhm |
Instrument Inputs
Frequency Response |
20Hz - 20kHz +0.5/-1.5dB |
Dynamic Range |
107 dB (A-Weighted) |
THD+N |
<0.015% |
Maximum input level |
+13 dBu |
Gain Range |
50 dB |
Input Impedance |
1 MOhm |
Line & Monitor Outputs
Dynamic Range (Line Outputs) |
109 dB (A-Weighted) |
Maximum Output Level (0 dBFS) |
+16 dBu |
THD+N |
<0.001% |
Ouput Impedance |
136 Ohm (Balanced) |
FOP30092017
