General
Model Name : PT Special
Item Number : 667

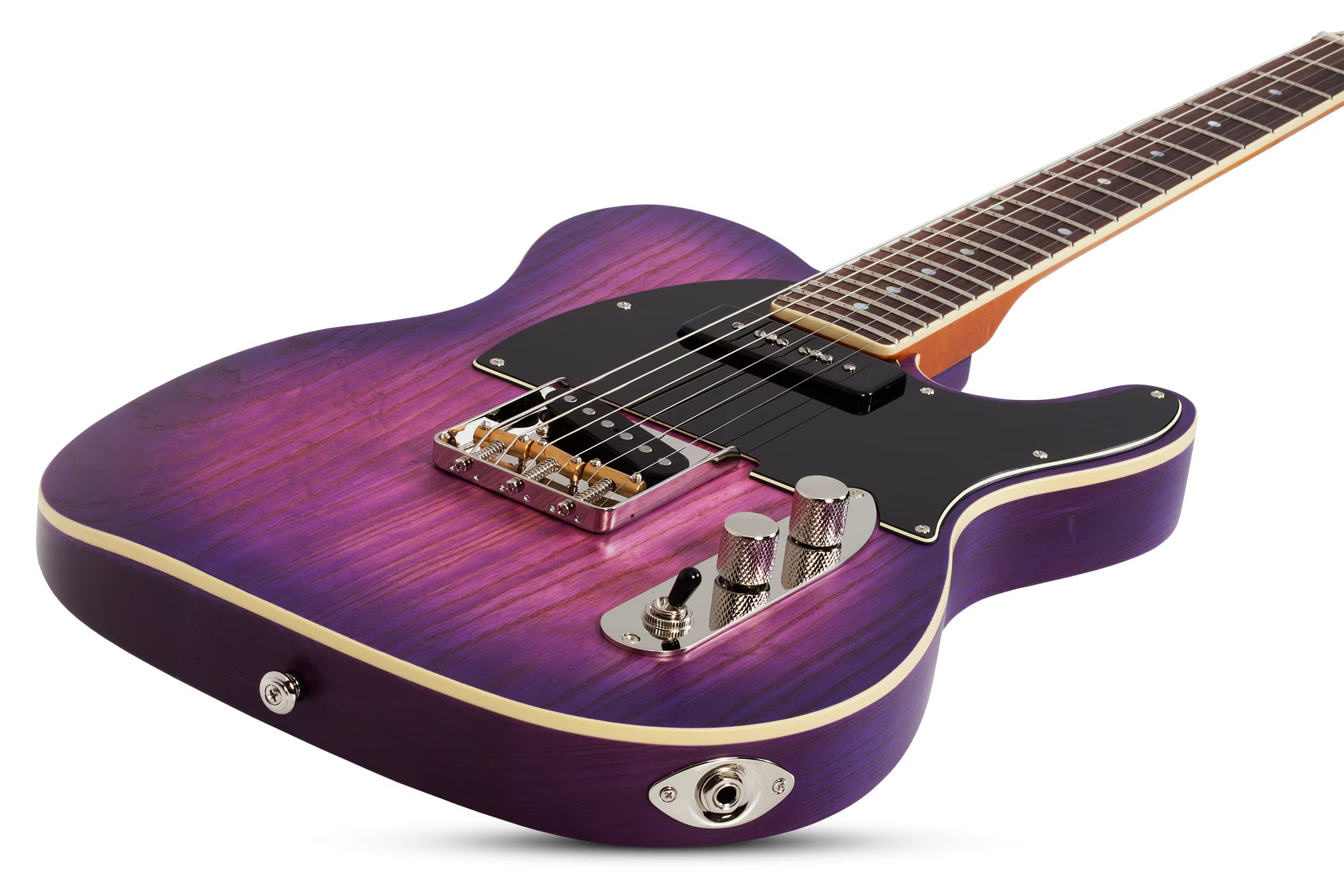

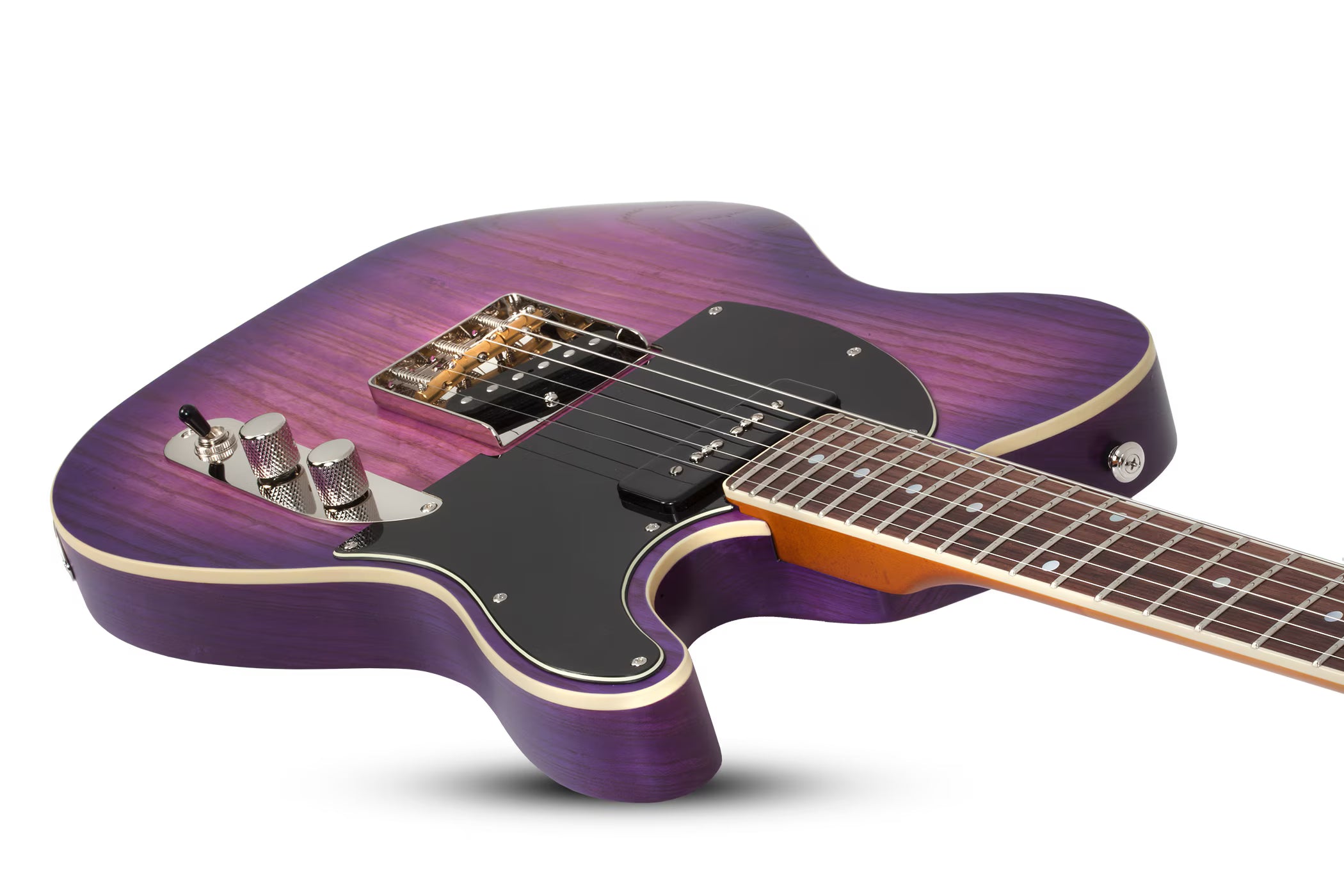

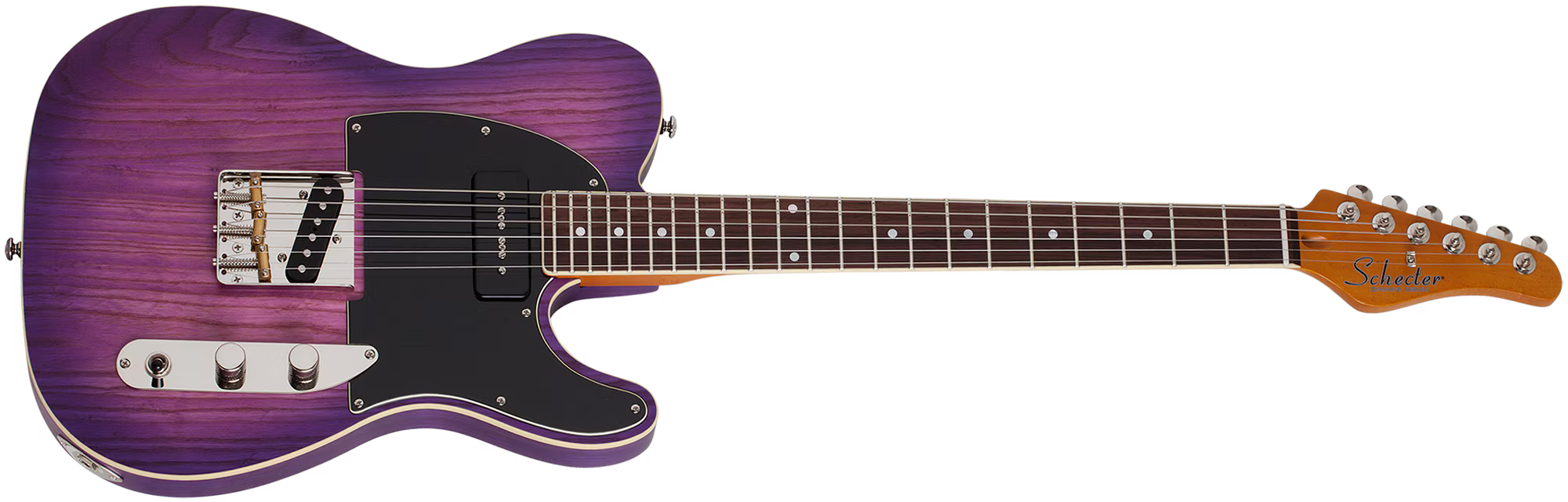

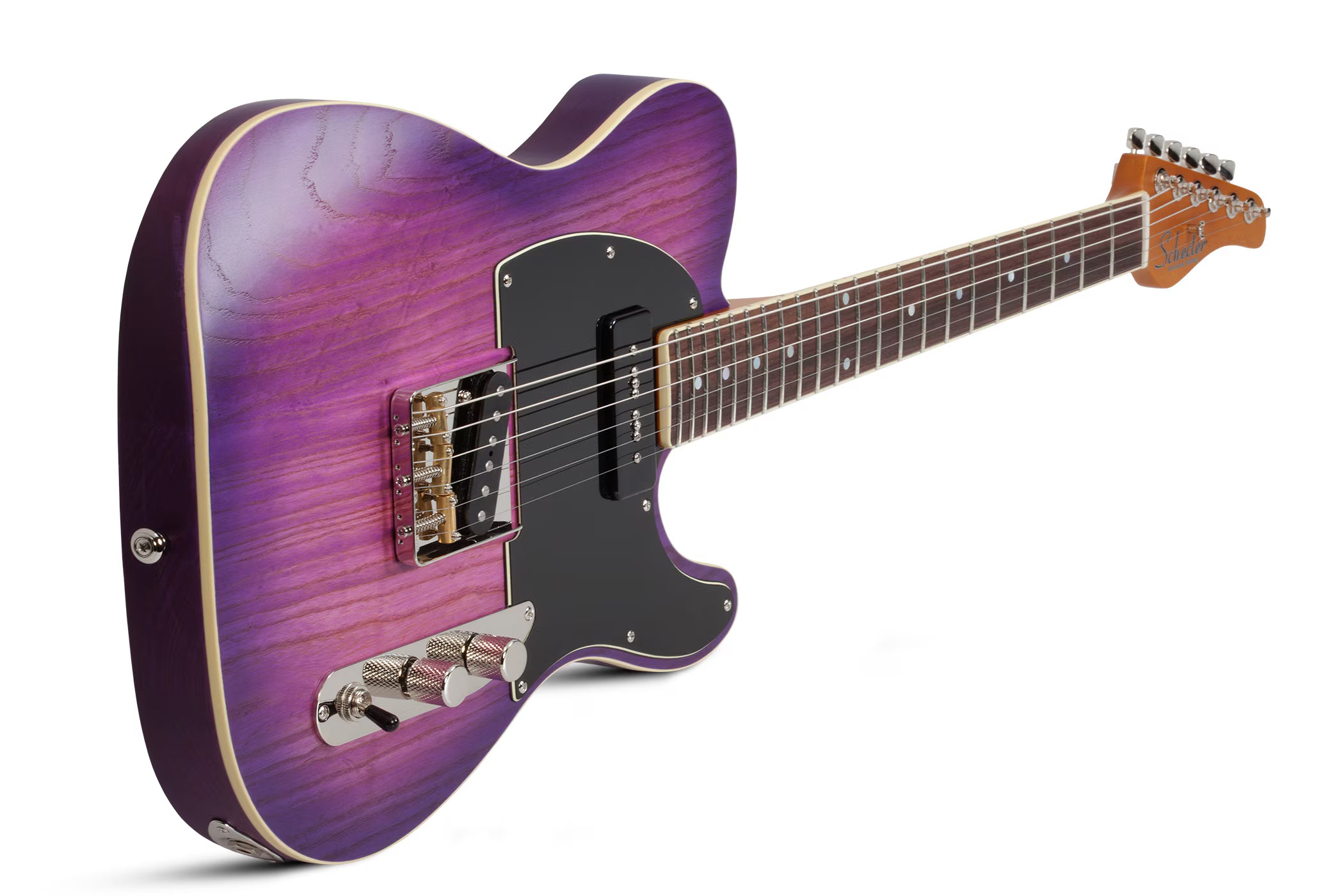

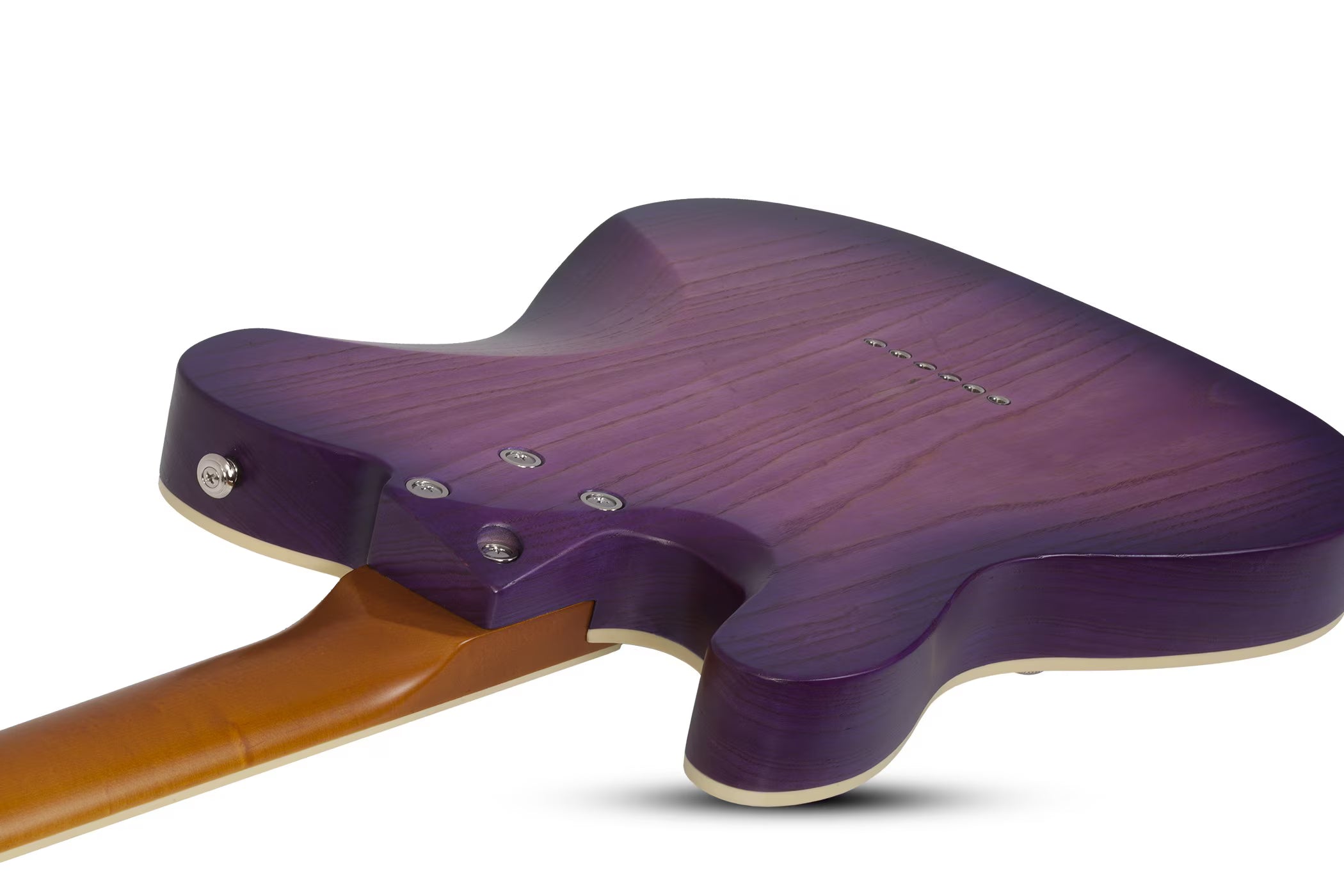

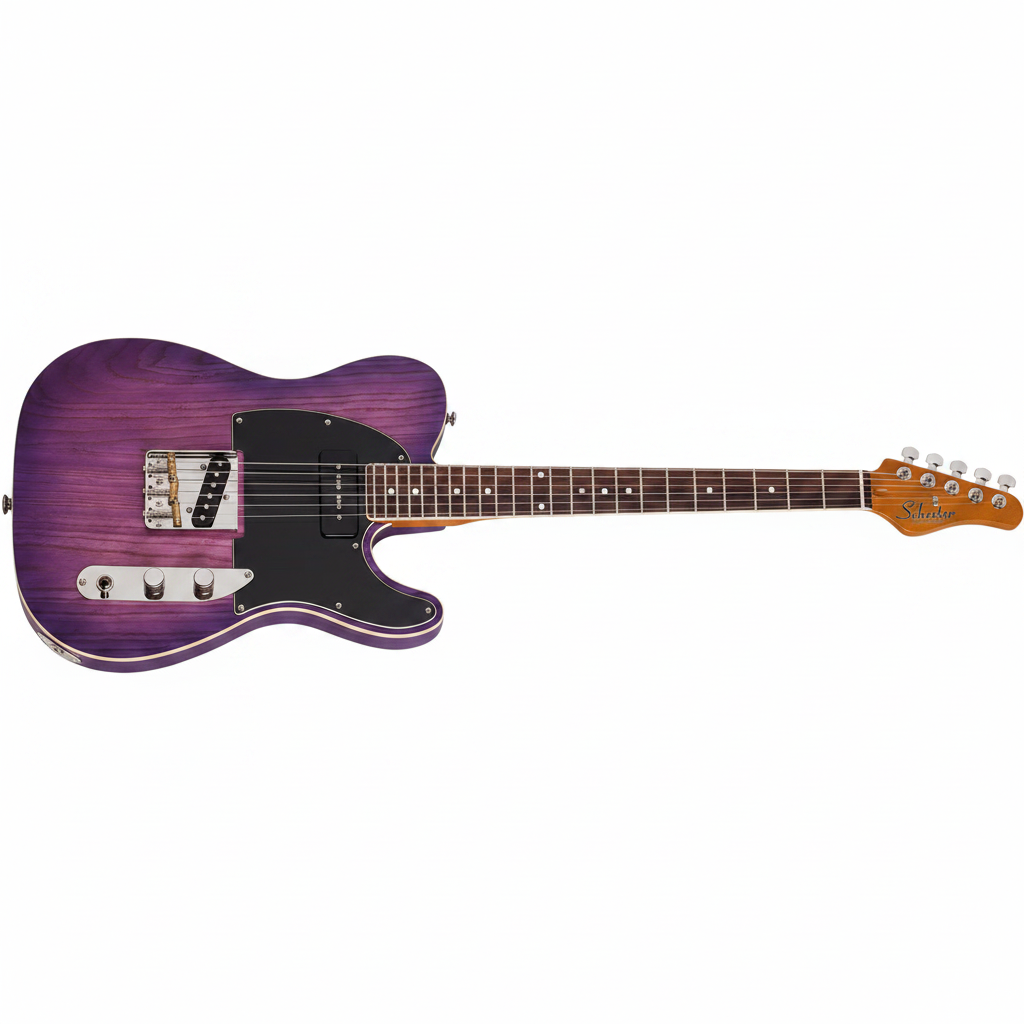

Guitar Color Shown : Purple Burst Pearl (PBP)

Neck

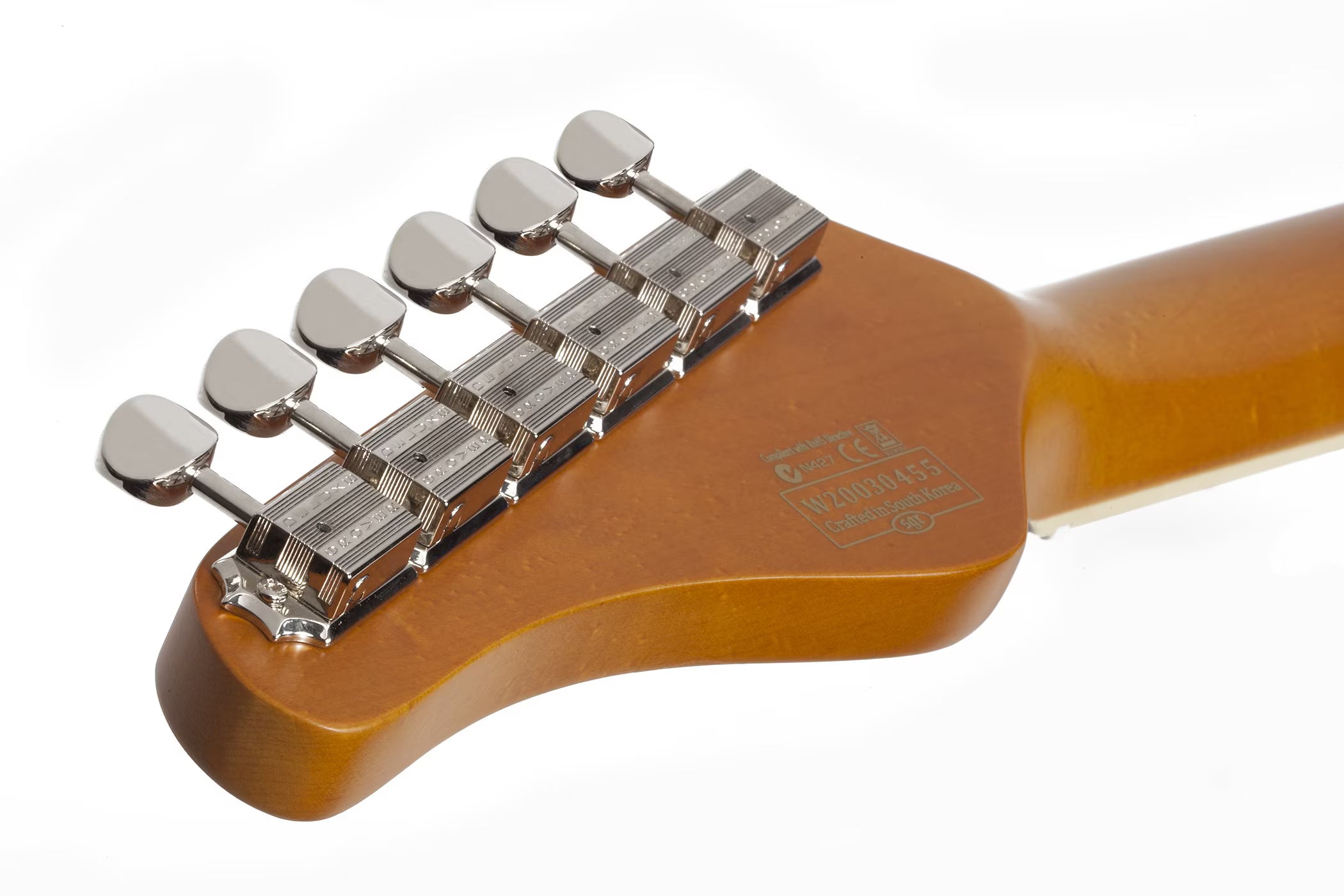

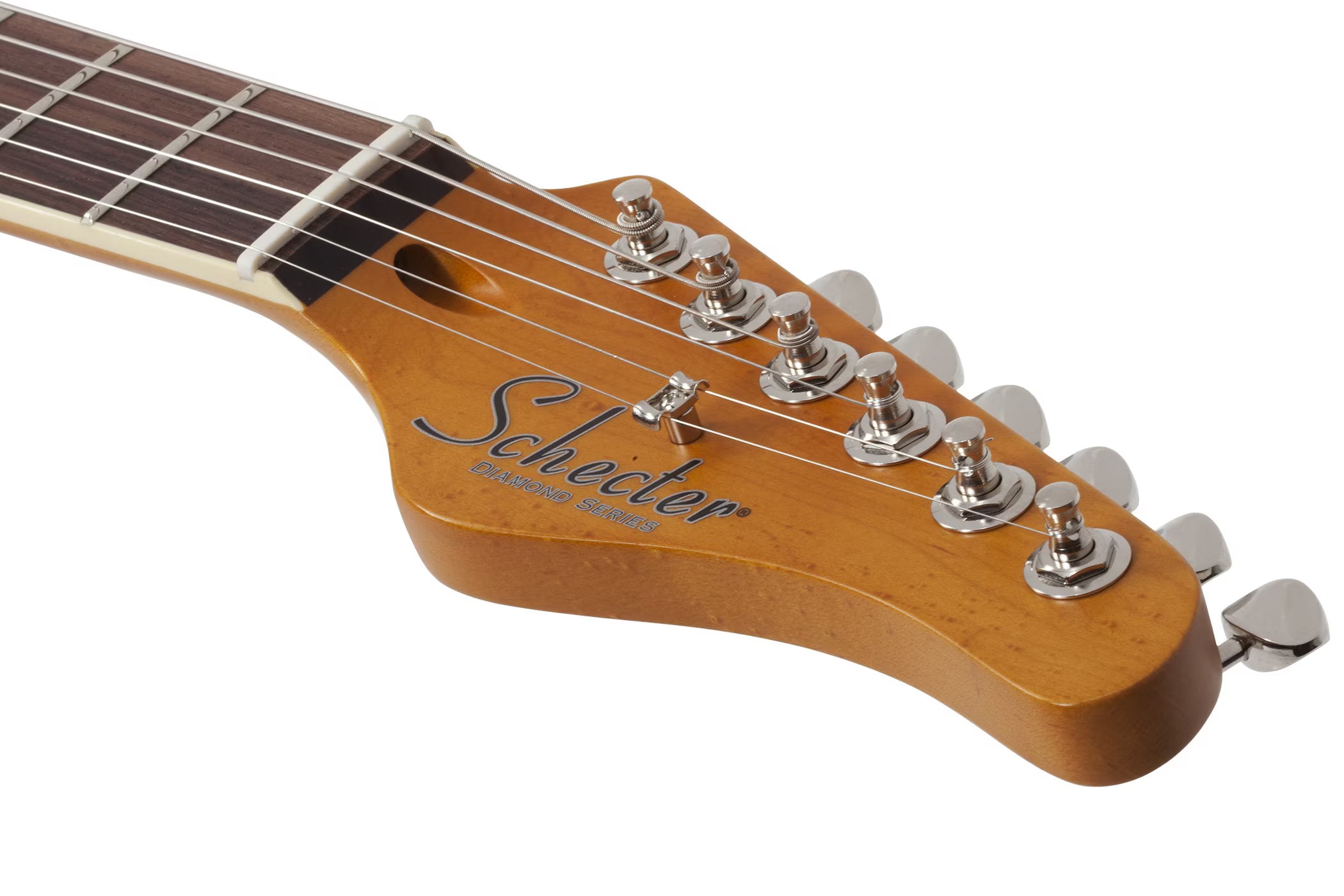

Tuners : Grover Vintage Deluxe
Fretboard Material : Rosewood
Neck Material : Maple
Inlays : Mother of Pearl Dots
Scale : 25.5" (648mm)
Neck Shape : Vintage "C"
Thickness : @ 1st Fret- .826" (21mm)/ @ 12th Fret- .905" (23mm)
Frets  22 Jumbo
Fretboard Radius : 12" (305mm)
Nut : Graph Tech XL Ivory Tusq
Nut Width : 1.653" (42mm)
Truss Rod : 2-Way Adjustable Rod w/ 5/32" (4mm) Allen Nut

Body
Guitar Colors : Purple Burst Pearl (PBP)
Hardware Color : Nickel
Top Contour : Flat Top
Dexterity : Right Handed
Construction : Bolt-on
Body Material : Swamp Ash
Binding : Creme 1-ply

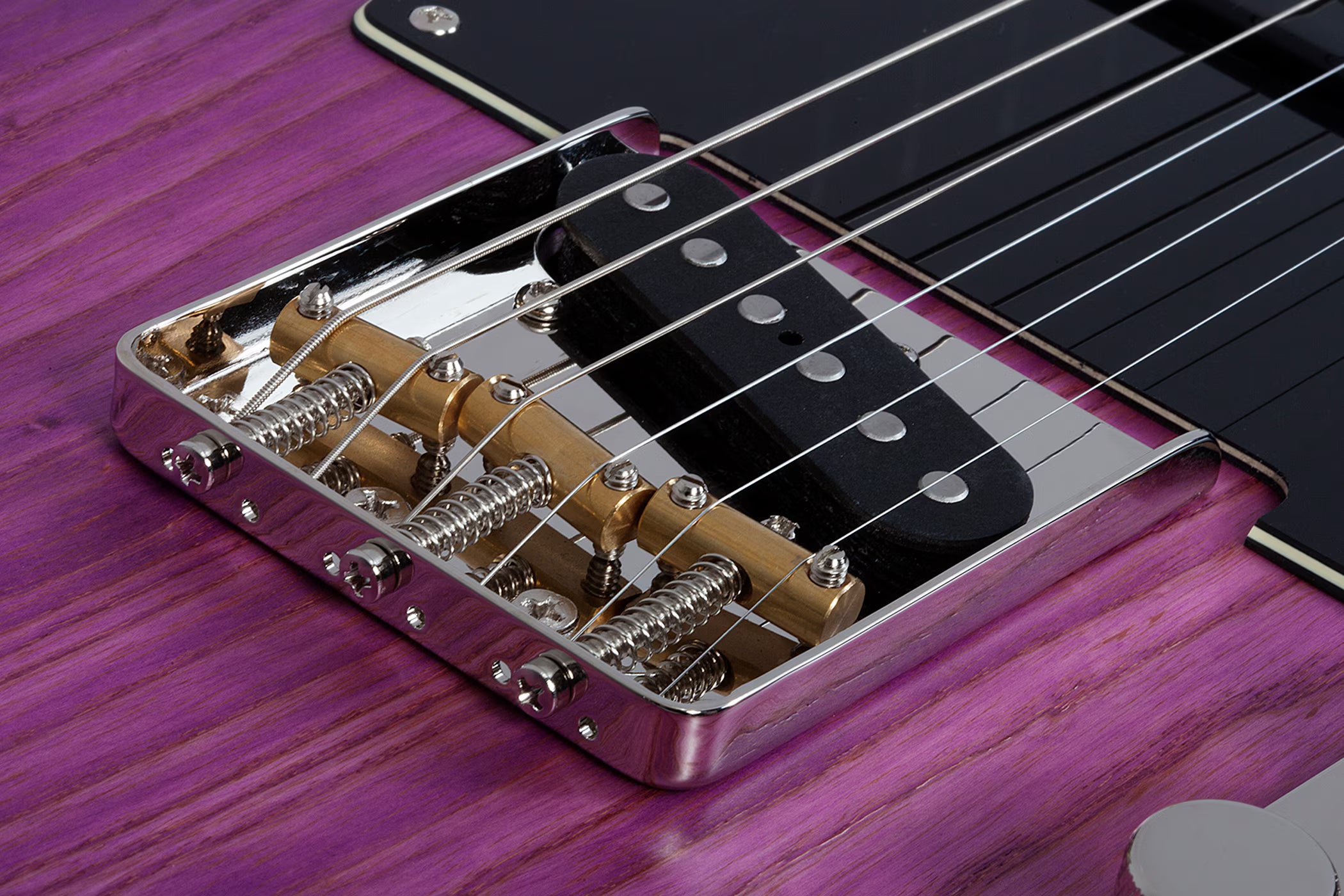

Bridge : Vintage Ashtray with Staggered Brass Saddles

Electronics

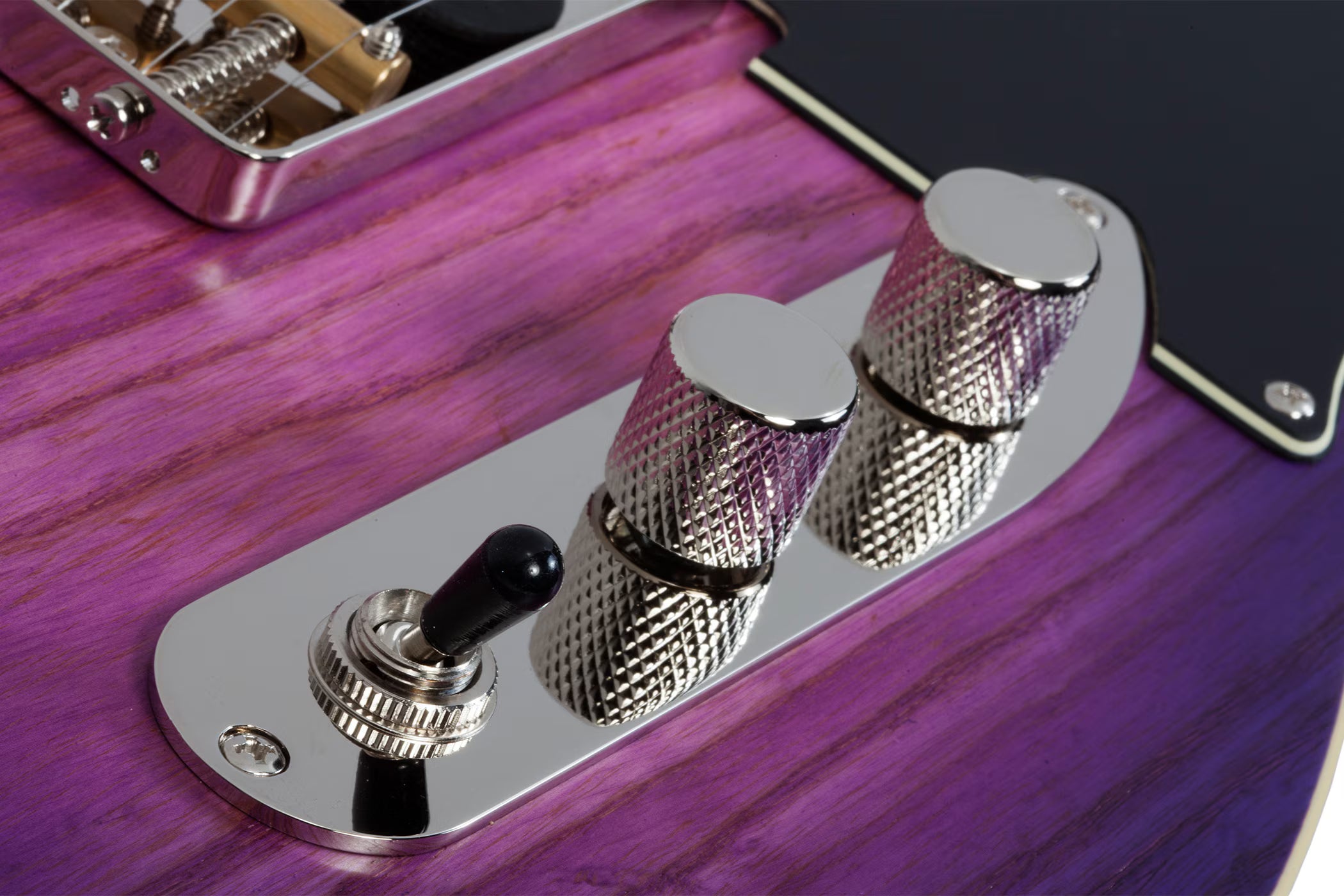

Controls Volume/Tone (Series-Parallel Push-Pull)/3-Way Switch
Bridge Pickup : Schecter Diamond VT-1
Neck Pickup : Schecter Diamond V-90

Accessories
Knobs : Metal Knurled w/ Set Screw
Strings : Ernie Ball Regular Slinky #2221 (.010-.046)
