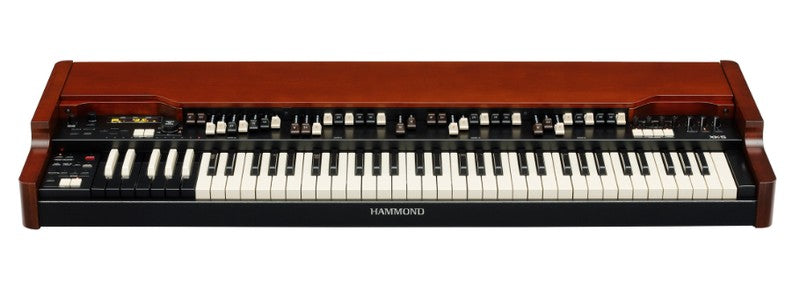

Hammond - XK-5 60-21097

$5,342.00
Steve's Code: 64994
By Hammond
Description

The HAMMOND B-3™ organ and its siblings such as the C-3™ and A-100™ have been the single most influential keyboard instruments in musical history, perhaps apart from the acoustic piano. When paired with the spinning Leslie® speaker, the HAMMOND’s sonic versatility defined the electrified keyboard sound of genres from rock to soul to Gospel to jazz. This sound is as sought after today as ever.


With the XK-5 and Heritage Series, HAMMOND is proud to announce that we’ve closed the final millimeters of the realism gap—in terms of both sound and feel—in a form factor that’s far more portable and affordable than a vintage Hammond organ. We are very proud of this instrument for providing an absolutely authentic playing experience that meets the demands of even the most seasoned B-3 purist. We feel it has no peer among today’s keyboard offerings, and as such, it is…The NEW ORIGINAL





Product Specs – XK-5


Manual



61 playing keys plus 12 Preset Keys
Square-front (“waterfall”-style)
New mechanical key-bed design

Split


SPLIT panel control
Assignable split point

Tone Generator


MTW™ (Modeled Tone Wheels)
61-note polyphony for Manuals
5-note polyphony for Pedals

Virtual Multi-Contacts™


Custom Contacts (3 Factory, 3 User)
3 Physical Contacts, 9 Assignable Virtual Contacts
Adjustable Attack, Release, Decay

Harmonic Drawbars®


5 sets (4 Manuals, 1 Pedal)
Upper 2 X 9 pitches
Lower 2 X 9 pitches
Pedal 2 pitches

Drawbar Voicing


4 choices for Manuals (A-100, B-3, C-3, Mellow)
4 choices for Pedals (Normal, Muted, Synth 1 & 2)

Custom Tone Wheel (CTW™)


3 Factory, 3 User for A-100, B-3, C-3 & Mellow Drawbar Voicings
CTW’s identified by model and serial number
Adjustable parameters for each tone wheel

Touch-Response Percussion™


Percussion On, Normal/Soft Volume,
Slow/Fast Decay, 2nd & 3rd Harmonic,
Adjustable Normal/Soft Volume settings,
Slow/Fast Decay rates, Velocity, Key Tracking,
1’ Drawbar Cancel ON/OFF

Vibrato & Chorus™


Virtual Scanner™ (3 settings)
Adjustable rate, Vibrato/Chorus Mix
Vibrato-on-Pedal: ON/OFF

Overdrive


Tube/Solid State
Adjustable drive level

Preset Keys


9 Presets plus Cancel each Manual
2 Adjust Presets each Manual
9 programmable Preset Banks

Patches


100 User, 100 Factory Patches
Assignable to Preset Keys as Favorites
Assignable Patch Load: Drawbar registrations, Drawbar parameters, Internal & External Zones, Multi-Effects, Reverb.

Tube Preamp


12AU7/12AX7 Tubes
Adjustable Routing & Drive Level

MT™ Matching Transformer


Adjustable drive level, Hysteresis, upper/lower/percussion levels

Multi-Effects


Tremolo, Auto Pan, Wah-Wah, Ring Modulator, Phaser, Flanger, Chorus, Delay. Adjustable parameters for each effect.

Master Equalizer


Bass/Mid/Treble panel controls
Adjustable gain & center frequency

Programmable Equalizer


Bass, Mid, Treble
Adjustable center frequency
Hammond Preamp Tone Control

Leslie®


STOP, FAST, BYPASS panel controls.
Custom Cabinets (8 Preset, 8 User)
Adjustable Slow & Fast Speeds, Rise & Fall Times, Horn/Drum/Subwoofer Volume Balance, Microphone Settings.

Reverb


ON/OFF panel control
11 programs
Leslie-on-Reverb: ON/OFF

MIDI


5 MIDI Templates
3 Keyboard Channels (Upper, Lower, Pedals)
6 External Zones (3 Upper, 2 Lower, 1 Pedals)
Assignable MIDI channels, key range, Program Change, Pan, Velocity Curve, Min/Max Volume
IN 1, IN 2, OUT Connections

Display


OLED, 20 character, 2 line
7 Control Buttons & VALUE Rotary Knob

USB


“A” port (“To USB Flash Drive”)
“B” port (“To Host”)

Tune/Transpose


Transpose +- 6 semitones
Fine Tune +- 10 cents
Octave Up/Down +- 2 octaves

H-BUS® Connector


To Pedals/Expression Pedal

Audio Connections


LINE OUT L/MONO / R
Headphone Jack

11-pin Leslie® Connector


.

Other Connections


CONTROL 1, CONTROL 2,
8-pin DIN (EXP-100F Expression Pedal)
AC Input

Dimensions


119 cm (W) 40cm (D) 12cm (H)
Weight 15.7 kg.
