SPECS

    body shape    Grand Dreadnought body
    bracing    X-M Bracing
    top    Solid Sitka Spruce top
    back & sides    Okoume back & Okoume sides
    neck    Low Oval Grip with Rounded Fretboard EdgeThermo Aged™ Nyatoh neck
    fretboard    Ovangkol fretboard
    bridge    Ovangkol scalloped bridge
    inlay    White dot inlay
    soundhole rosette    Wooden Multi rosette

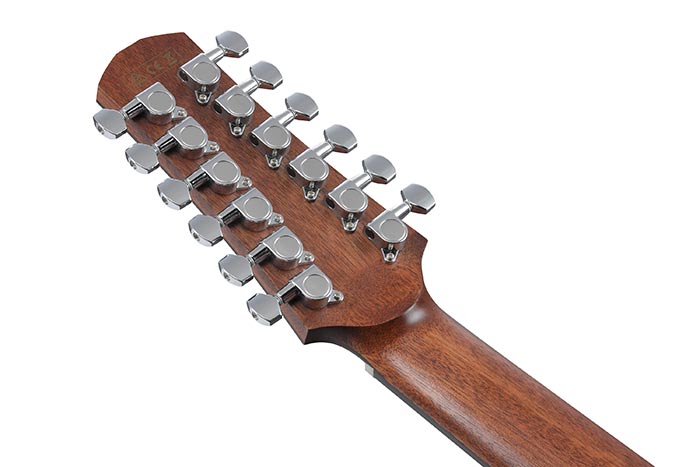

    tuning machine    Chrome Die-cast tuners (18:1 gear ratio)
    number of frets    20
    bridge pins    Ibanez Advantage™
    strings    D'Addario® XTAPB1047-12
    string gauge    .010/.010/.014/.014/.023/.008/.030/.012/.039/.018/.047/.027
    string space    11mm
    factory tuning    1E,2B,3G,4D,5A,6E
    pickup    Ibanez AP11 Magnetic
    preamp    Ibanez Custom Electronics w/ Volume and Tone Control
    output jack    1/4" Endpin Jack
    battery    9V x1

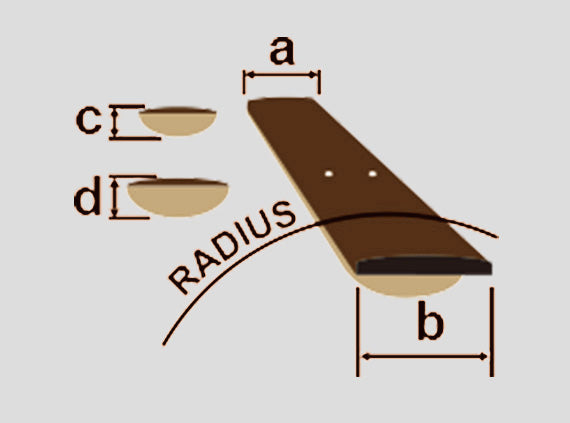

NECK DIMENSIONS

        Scale :        651mm/25.6"
        a : Width        48mm at NUT
        b : Width        60mm at 14F
        c : Thickness        22.5mm at 1F
        d : Thickness        23mm at 7F
        Radius :        400mmR

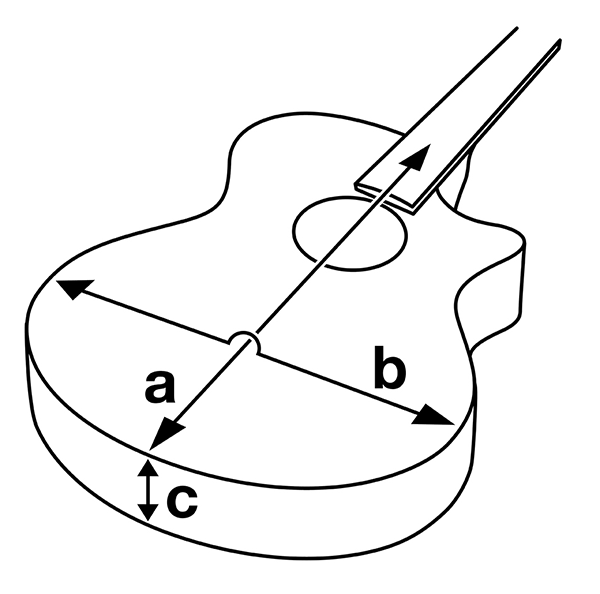

BODY DIMENSIONS

        a : Length        20 3/8"
        b : Width        16 1/4"
        c : Max Depth        5 "

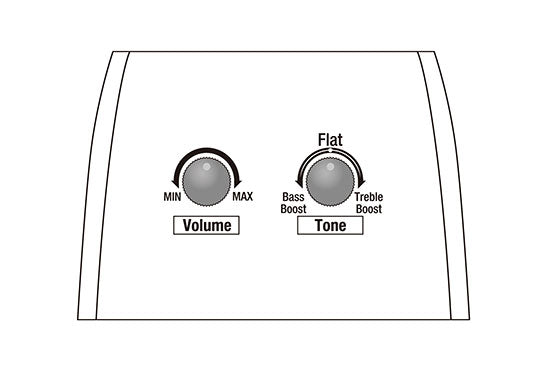

PREAMP

This preamp utilizes a two knob configuration. The knob closest to the player is the volume control for the magnetic pickup. The knob furthest from the player is the tone knob.

Features

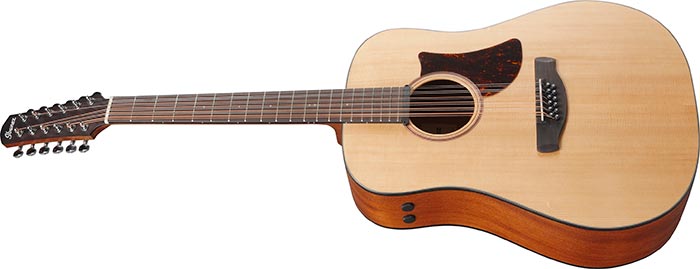

Grand Dreadnought body

Through a rigorous R&D process spanning several years, Ibanez has reimagined the Dreadnought from the ground up, pursuing the height of rich sound, robust low end, and rich tone. This brand new body shape is called the Grand Dreadnought. Proportionally, the Grand Dreadnought body is 5% larger than a standard dreadnought, allowing for more volume, richer tone, and more powerful low end response. It's also extremely comfortable to play thanks to the extensive consideration given to its ergonomics.

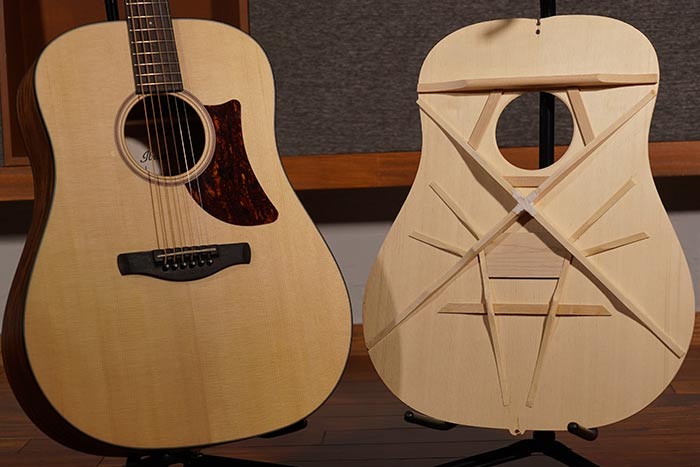

X-M Bracing

After spending years of trial-and-error, Ibanez realized the out-of-the-box X-M Bracing to generate the ultimate sound standing out on the stage. The carefully designed scalloped X-bracing, the allocation of tone braces, and finger braces transmit the string vibration efficiently through the bridge to the body. The X-M Bracing creates the clear bottom and crispy treble sound with trimmed warm mid-range, yet provides a wide dynamic range and high response.

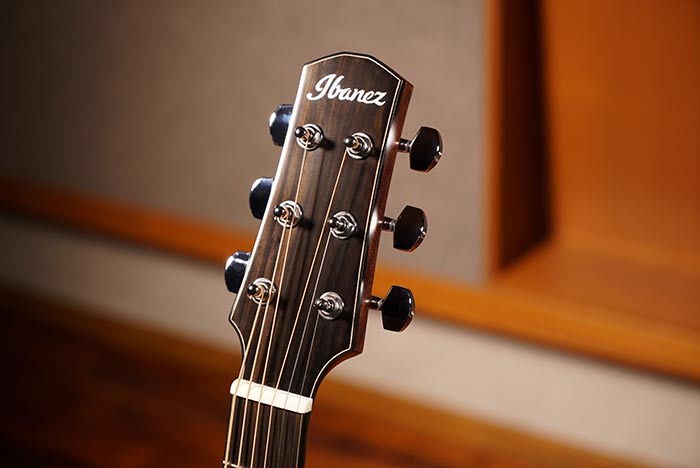

Functional Tapered Headstock

The newly designed headstock shape is the result of thorough research and investigation. Its tapered shape provides lighter weight, as well as a straight string alignment which enhances tuning stability and reduces any neck twisting effect.

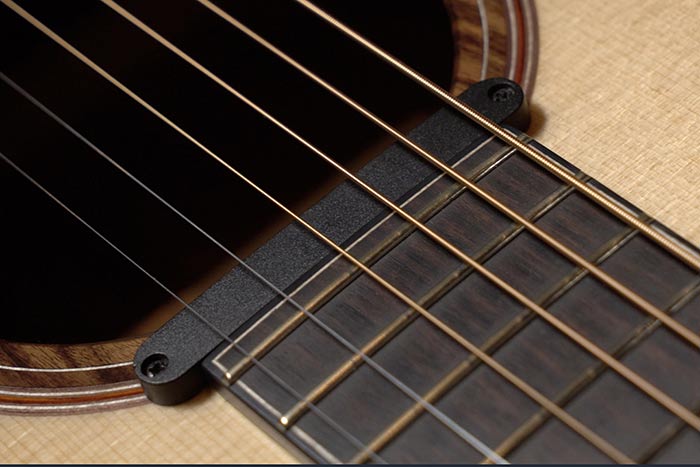

Ibanez AP11 Magnetic pickup

The AP11 pickup is small, lightweight and positioned so it won't inhibit the natural vibrations of the top wood. The pickup generates a highly responsive sound with minimal feedback and delivers a lively response throughout the entire frequency range. The sound is transparent and reflects the guitar's natural acoustic tone while preserving presence and mid-range. The AP11 also works well with effects such as reverb, chorus and many others.

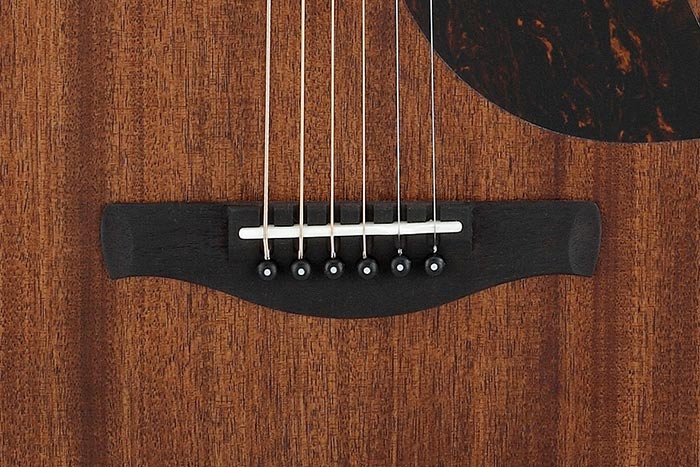

Ovangkol Scalloped bridge

The lightweight, scalloped bridge improves vibration efficiency for better resonance, as well as providing more flexibility in adjusting the action than usual bridge.

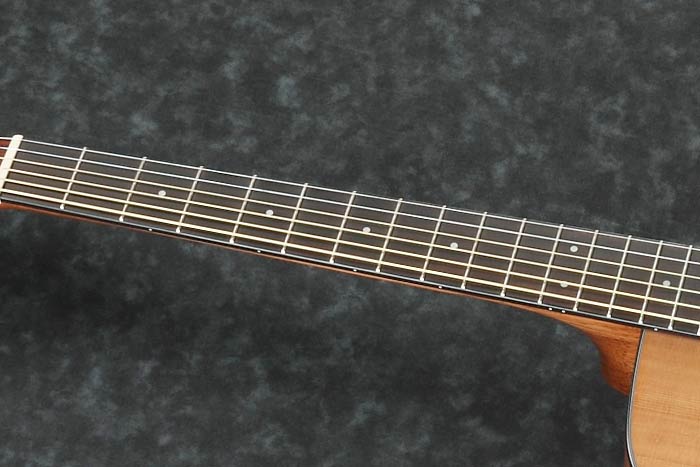

Ovangkol fretboard

The Ovangkol fretboard provides greater playing comfort.

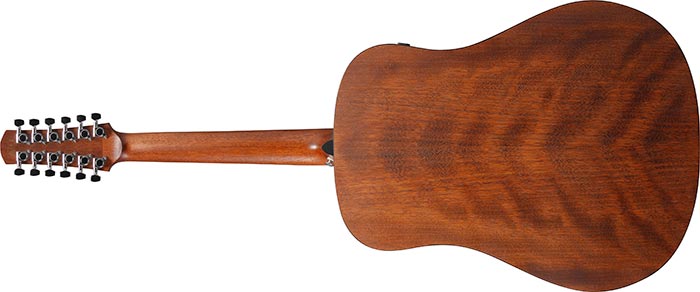

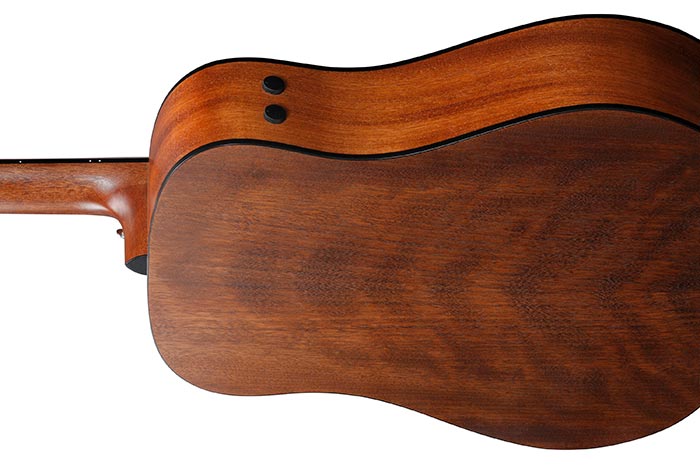

Okoume back and sides

The Okoume back and sides generate a woody, warm tone when the guitar is played softly or finger-picked and provide punchy high-mids with a clear projection when strummed.

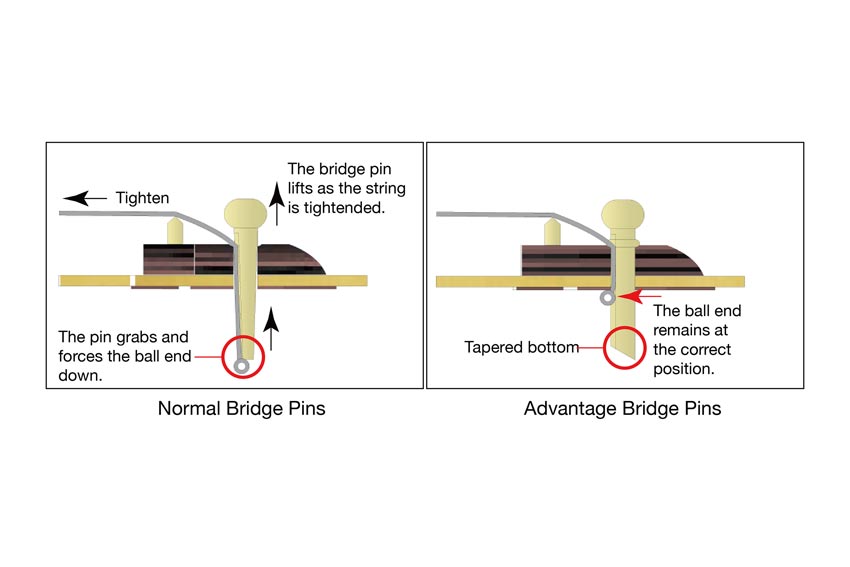

Ibanez Advantage™ bridge pins

These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.
