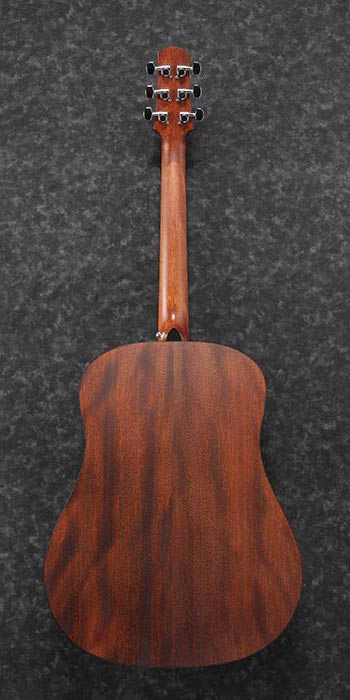

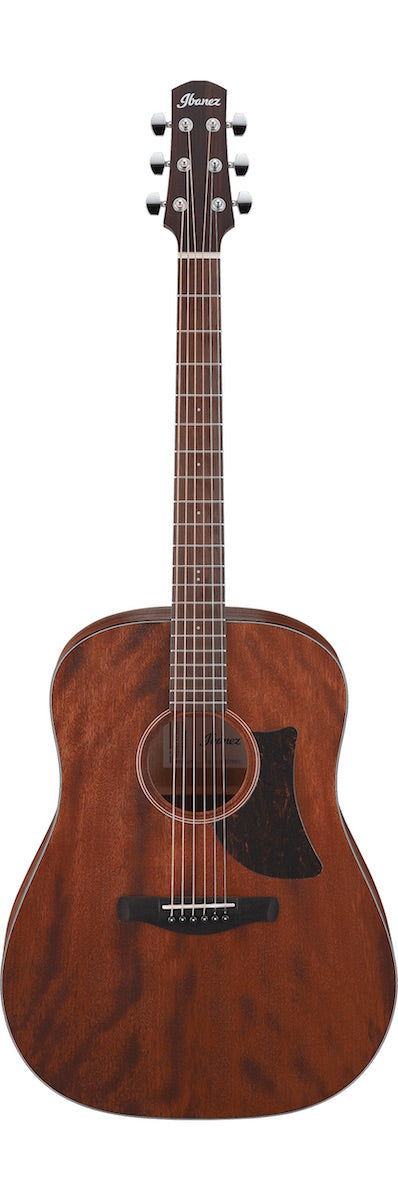

Ibanez - AAD140 OPN Open Pore Natural

Steve's Code: 14715
Barcode: 4549763279446
By Ibanez


body shape Grand Dreadnought body

bracing X-M Bracing

top Solid Sitka Spruce top

back & sides Okoume back & Okoume sides

neck Low Oval Grip with Rounded Fretboard EdgeThermo Aged™ Nyatoh neck

fretboard Ovangkol fretboard

bridge Ovangkol Scalloped bridge

inlay White dot inlay

soundhole rosette Wooden multi

tuning machine Chrome Die-cast tuners(18:1 gear ratio)

number of frets 20

bridge pins Ibanez Advantage™

strings D'Addario® XTAPB1253

string gauge .012/.016/.024/.032/.042/.053

string space 11mm

factory tuning 1E,2B,3G,4D,5A,6E


Scale : 651mm

a : Width 43mm at NUT

b : Width 55mm at 14F

c : Thickness 21mm at 1F

d : Thickness 22mm at 7F

Radius : 400mmR
