Specs:
- Body Shape: Grand Dreadnought with Advanced Access Cutaway Body
- Bracing: X-M Bracing
- Top: Solid Sitka Spruce Top
- Back & Sides: Sapele Back & Sapele Sides
- Neck: AAD | Okoume Neck
- Fretboard: Purpleheart Fretboard
- Bridge: Purpleheart Bridge
- Inlay: White Dot Inlay
- Soundhole Rosette: Black & White Multi-Rosette

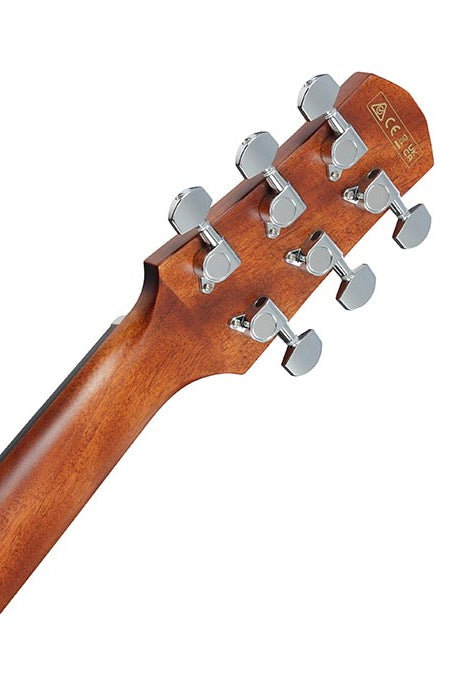

- Tuning Machine: Chrome Die-Cast Tuners (18:1 Gear Ratio)
- Number of Frets: 20
- Bridge Pins: Ibanez Advantage™
- Strings: D'Addario® EXP16
- String Gauge: 0.012 | 0.016 | 0.024 | 0.032 | 0.042 | 0.053
- String Space: 11 mm
- Factory Tuning: 1E, 2B, 3G, 4D, 5A, 6E
- Pickup: Ibanez T-bar Undersaddle
- Preamp: Ibanez AEQ-TP2 Preamp w/ Onboard Tuner
- Output Jack: Balanced XLR & 1/4" Outputs

Neck Dimensions:
- Scale: 650 mm | 25.6"
- Width at Nut: 43 mm
- Width at 14th Fret: 55 mm
- Thickness at 1st Fret: 21 mm
- Thickness at 7th Fret: 22 mm
- Fingerboard Radius: 400 mmR

Body Dimensions:
- Body Length: 20 3/8"
- Maxiumum Body Width: 16 1/4"
- Maxiumum Body Depth: 5"

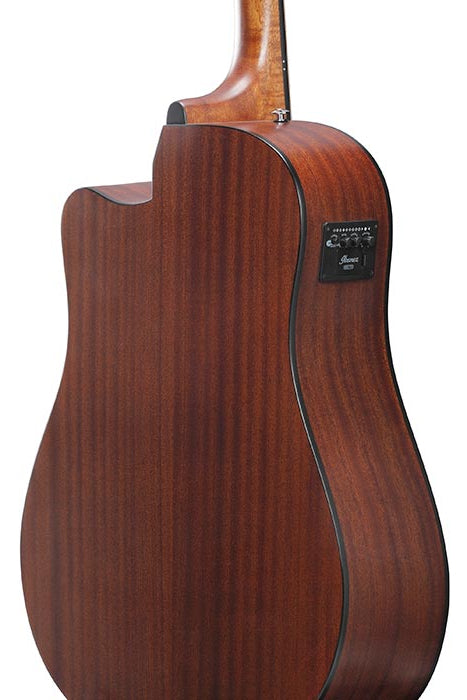

Preamp:
- The neck side of the preamp is the top of the control panel. There is 1 button switch and 3 knobs towards the top of the control panel. The button furthest left is the tuner on/off switch. To the right of that are the bass, treble, and volume knobs.
