Specs:
- Neck Type: AF Artcore | Nyatoh | Set-in Neck
- Top | Back | Side: Linden Top | Linden Back | Linden Sides
- Fretboard: Bound Walnut Fretboard | White Dot Inlay
- Fret: Medium Frets
- Number of Frets: 20
- Bridge: Gibraltar Performer Bridge
- String Space: 10.5 mm
- Tailpiece: VT06 Tailpiece
- Neck Pickup: Infinity R (H) Neck Pickup (Passive | Ceramic)
- Bridge Pickup: Infinity R (H) Bridge Pickup (Passive | Ceramic)
- Factory Tuning: 1E, 2B, 3G, 4D, 5A, 6E
- String Gauge: 0.010 | 0.013 | 0.017 | 0.030 | 0.042 | 0.052
- Hardware Color: Chrome

Neck Dimensions:
- Scale: 628 mm
- Width at Nut: 43 mm
- Width at 20th Fret: 56.3 mm
- Thickness at 1st Fret: 21 mm
- Thickness at 9th Fret: 24 mm
- Fingerboard Radius: 305 mmR

Body Dimensions:
- Body Length: 19 1/2"
- Maxiumum Body Width: 15 3/4"
- Maxiumum Body Depth: 3 5/8"

Switching System:
- When the pickup selector switch is in the neck position, the neck pickup is active. When the switch is in the center position, both the neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.

Controls:

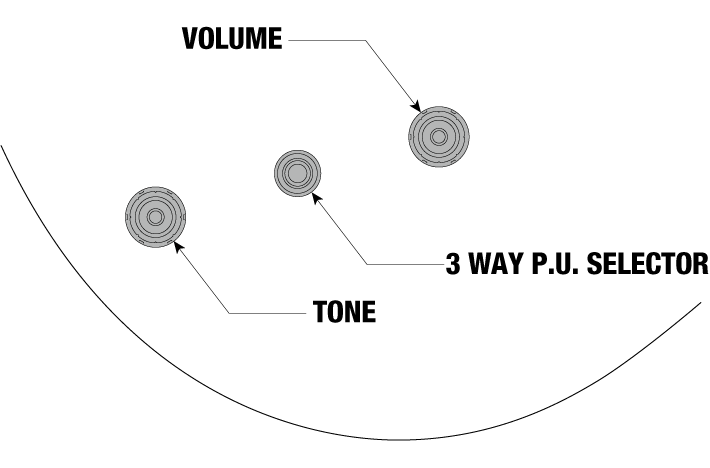

- There are 2 knobs and 1 switch on this guitar. The tone knob is located near the edge of the body, and the knob closest to the neck is the volume knob. The switch located between these knobs is a 3-way pickup selector switch.
