Features

Tri-sound switch

The Tri-sound switch gives a humbucker pickup three different sounds, expanding the versatility of your guitar.

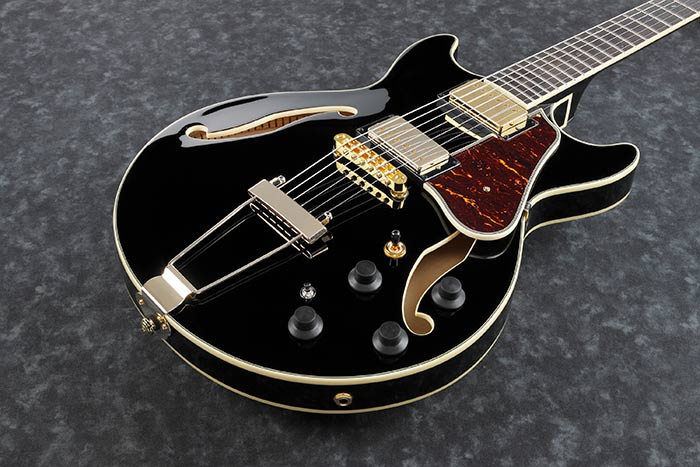

Gibraltar Performer bridge

The Gibraltar Performer bridge provides rich sustain and tuning stability. The low-positioned saddles promise comfortable playability.

3pc Nyatoh/Maple neck

The 3pc Nyatoh/Maple Neck provides a rich mid-low end and great resonance.

Macassar Ebony fretboard

Macassar Ebony produces tight lows and mid range along with strong attack in the highs and quick response with rich sustain.

Super 58 Pickups

Super 58 pickups feature moderate output and vintage tone.

SPECS

neck type AM Expressionist 3pc Nyatoh/MapleSet-in neck

top/back/side Linden top Linden back Linden sides

fretboard Bound Macassar Ebony fretboard Abalone dot inlay

fret Medium frets

number of frets 22

bridge Gibraltar Performer bridge

string space 10.5mm

tailpiece VT06 tailpiece

neck pickup Super 58 (H) neck pickupPassive/Alnico

bridge pickup Super 58 (H) bridge pickupPassive/Alnico

factory tuning 1E,2B,3G,4D,5A,6E

string gauge .010/.013/.017/.030/.042/.052

nut Plastic nut

hardware color Gold

NECK DIMENSIONS

Scale: 628mm

a: Width 43mm at NUT

b: Width 57mm at 22F

c: Thickness 21mm at 1F

d: Thickness 24mm at 9F

Radius: 305mmR

BODY DIMENSIONS

a: Length 17 5/8"

b: Width 14 1/2"

c: Max Depth 2 5/8"
