Specs:
- Neck Type: GSR6 | Maple Neck
- Top | Back | Body: Poplar Body
- Fretboard: Jatoba Fretboard | White Dot Inlay
- Fret: Medium Frets
- Bridge: B16 Bridge
- String Space: 16.5 mm
- Neck Pickup: Dynamix H Neck Pickup (Passive)
- Bridge Pickup: Dynamix H Bridge Pickup (Passive)
- Equaliser: Phat II EQ
- Factory Tuning: 1C, 2G, 3D, 4A, 5E, 6B
- String Gauge: 0.032 | 0.045 | 0.065 | 0.080 | 0.100 | 0.125
- Hardware Color: Chrome

Neck Dimensions:
- Scale: 864 mm | 34"
- Width at Nut: 54 mm
- Width at 22nd Fret: 84 mm
- Thickness at 1st Fret: 21 mm
- Thickness at 12th Fret: 22 mm
- Fingerboard Radius: 400 mmR

Controls:
- There are 4 knobs on this bass. The 2 knobs closest to the bridge are the volume knobs. The knob closest to the input jack is the tone knob, and the 4th knob, closest to the neck, is the Phat II EQ knob.

Frequency Response:

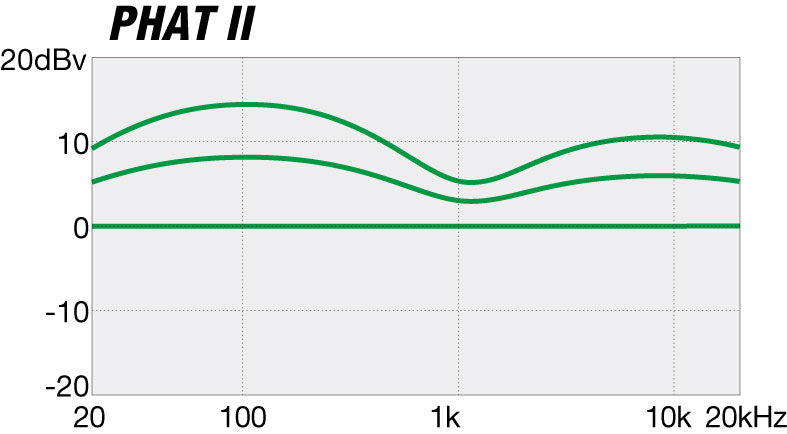

- The variable range of the frequency increases from 20 Hz to the high range, and the variable range decreases from the peak around 100 Hz to around 1 000 Hz. The variable width of the frequency becomes large again in the high range from around 1 000 Hz, and reaches the peak at around 10 000 Hz, and then becomes smaller again. The variable range around 100 Hz is about 15 dB, the range around 1 000 Hz is about 5 dB, and the range around 10 000 Hz is about 10 dB.
