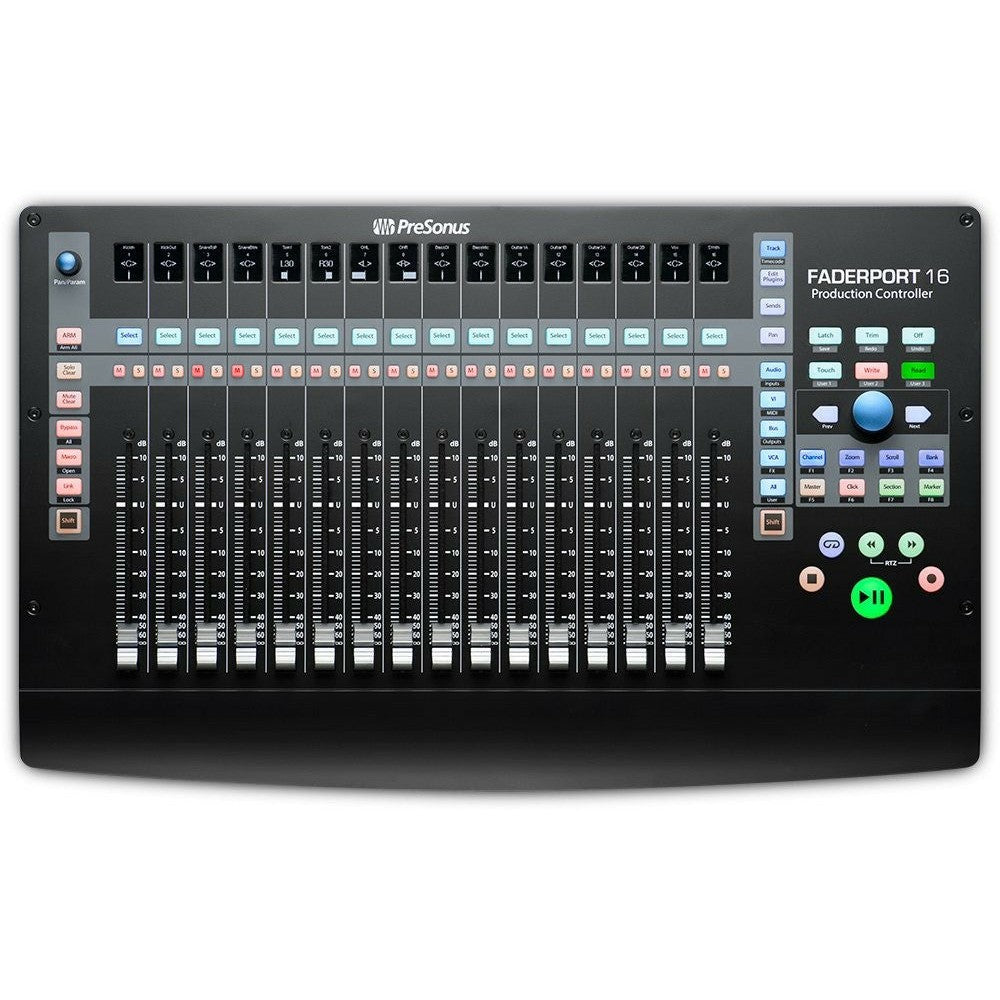

PreSonus - FaderPort 16 FaderPort™ 16: 16-channel Mix Production Controller

$959.99 $1,299.99
Steve's Code: 71360
Barcode: 673454006272

Description

16 touch-sensitive, 100 mm long-throw, motorized faders

16 Scribble Strip displays

Complete recording-transport controls: Play, Stop, Fast Forward, Rewind, Record, Loop

Drop Marker, Next/Prev Marker, Next / Prev Event

General session controls: Undo/Redo, Arm All, Solo/Mute Clear, Track Management, Click On/Off

Session Navigator provides quick control over Track Scrolling, Channel Banking, Timeline Scrolling, and much more

Channel Controls: Level, Pan, Solo, Mute, Rec Arm

Automation Controls: Touch, Latch, Trim, Write, Read, Off

Optional Fader functionality: Plug-in edit, bus sends, pan

Mac / Windows compatible with native Studio One support and HUI and Mackie Control Universal emulation

Footswitch input for hands-free start/stop

USB 2.0 connectivity



Technical Specifications

Input / Output

1 USB 2.0 port

1 Footswitch jack for hands-free stop/start

Faders

16 100 mm long-throw, touch-sensitive, motorized faders

Dual-servo motorized drive belt system for fast and quiet operation

Ultra-smooth feel and lightning fast

Heavy-duty construction

Resolution: 10-bit, 1,024 steps

Buttons and Knobs

General Controls Undo/Redo, Arm All, Solo/Mute Clear, Timecode, Track Management, Click On/Off, 4 programmable User buttons, 8 Function buttons, Macro, Parameter Link, Bypass Plug-ins

Channel Controls Level, Pan, Solo, Mute, Select, Rec Arm

Automation Controls Touch, Latch, Trim, Write, Read, Off

Optional Fader Functionality Plug-in Edit, Bus Sends, Pan

Window View Mix, Project, Transport, Undo

Transport Play, Stop, Fast Forward, Rewind, Record, Loop, Return to Zero (Functionality varies slightly, depending on the DAW.)

Navigation Track Scroll, Channel Banking, Timeline Scroll, Horizontal Zoom, Vertical Zoom, Drop Marker, Next/Prev Marker, Next/Prev Event, Scrub, Nudge

Console Management Show/Hide: Audio Tracks, Inputs, MIDI Tracks, Buses, Outputs, VCAs, FX; Show All

Displays 16 digital scribble strip displays, time code display, channel meters

Power

12 VDC, 1.2A external power supply (factory configured, included)

Physical

Dimensions

Height 2.11” (53.59 mm)

Depth 11.9” (302.26 mm)

Width 19.6” (497.84 mm)
