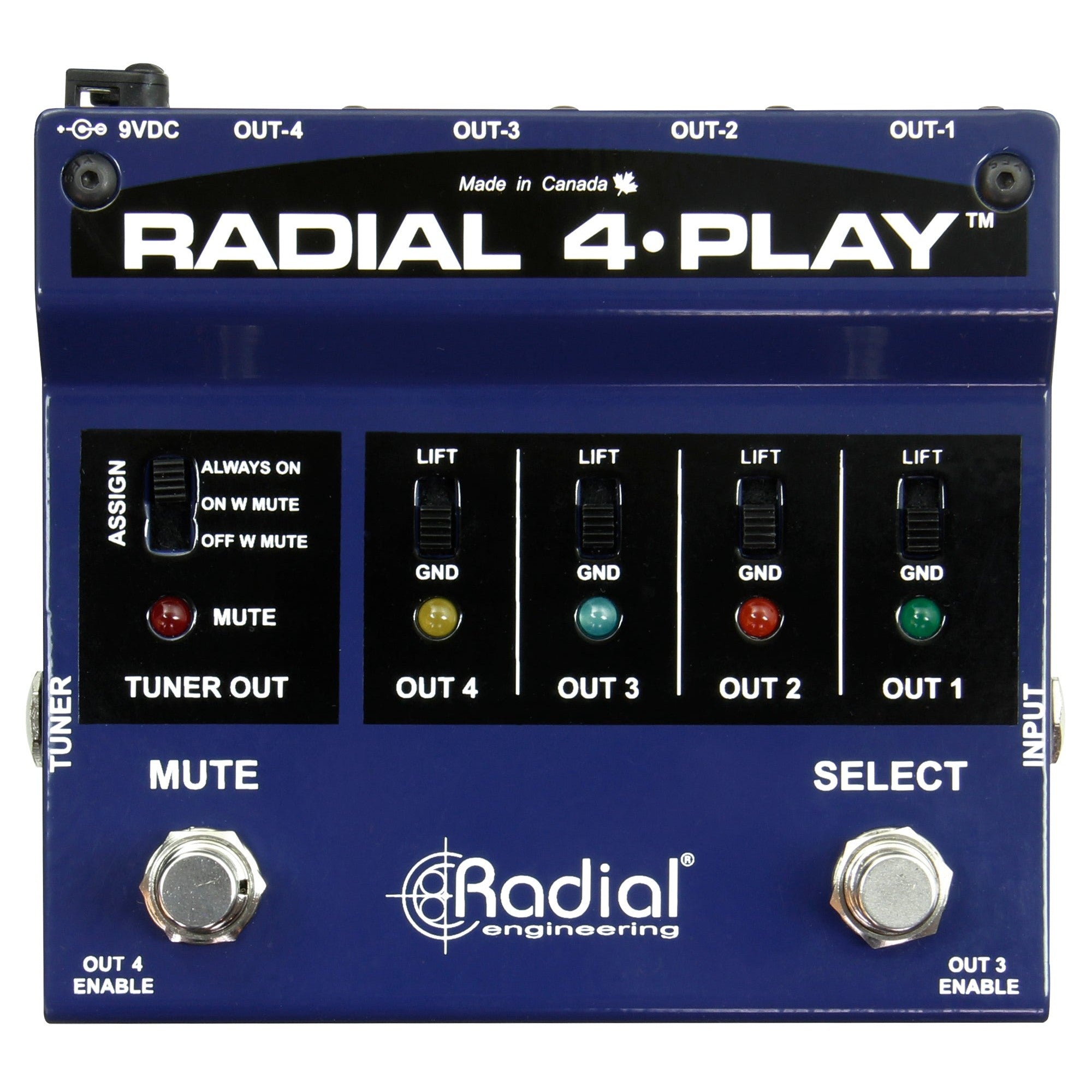

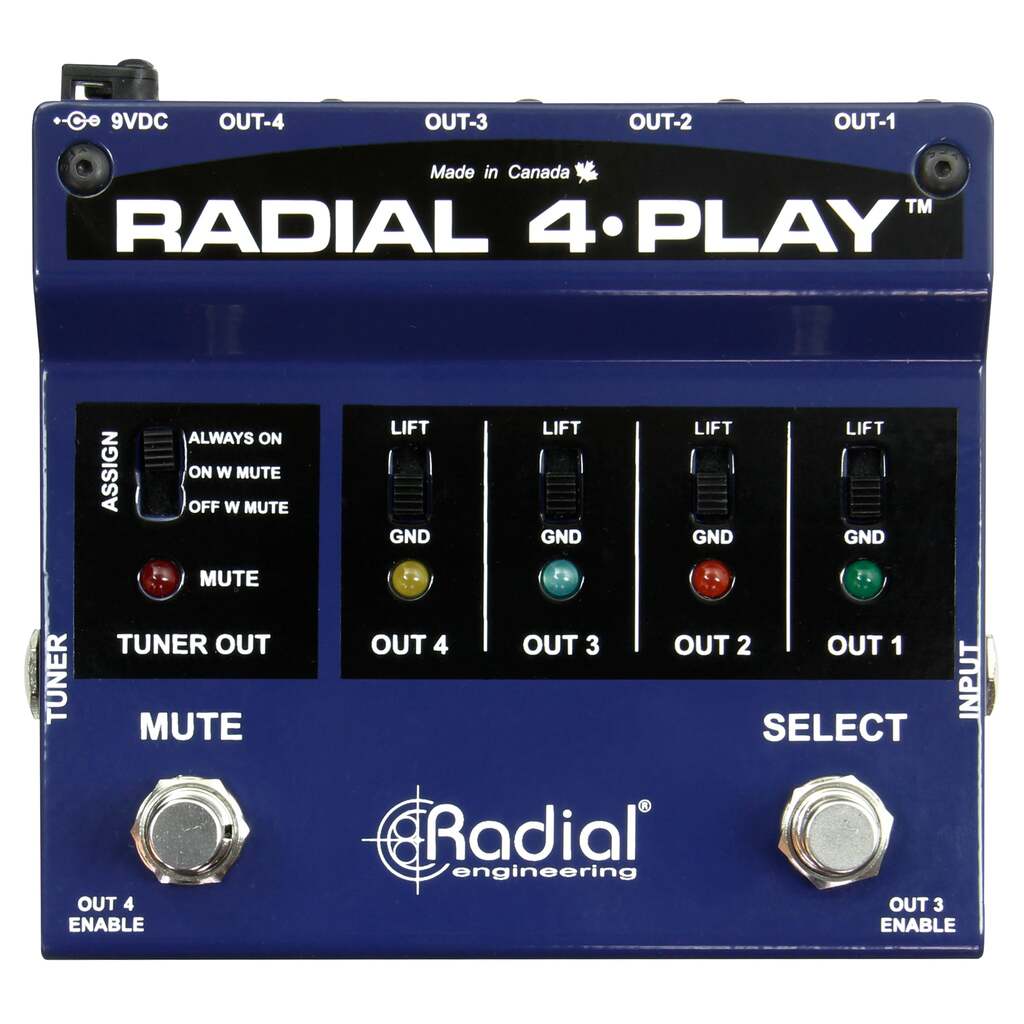

Features

• Lets you select between four balanced DI outputs

• Compact design fits on pedalboard

• High visibility LEDs provide status indication

• Mute switch for changing instruments or tuning

Benefits

• Gets rid of the spaghetti of cables on stage

• Gives each instrument its own audio channel

• Eliminates hand signals to the audio engineers

• Improves sound of each instrument

Cool stuff

• Tuner output is assignable and can be always on

• Sequential selector footswitch reduces the size

• Ground lift switches to eliminate hum and buzz

• Can be used like a multi-channel amp with acoustic guitar

Specifications

Audio circuit type: Classic Class-A FET input with balanced audio grade opamp output

Number of channels: 4

Frequency response: 20Hz - 20kHz

Dynamic range: 113dBu

Gain: 0dBu

Clip Level: +13dB

Total harmonic distortion: 0.03%

Intermodulation Distortion: 0.02%

Phase Deviation: -0.12° @ -20dBu / 1kHz

Input Impedance: 10M Ω

Output Impedance: 5.4K Ω

Noise: -100dBu

Maximum Input: +8dBu

Features

Ground lift

Input Connectors: 1/4"

Output Connectors: 4x XLR

Extras: Tuner output

General

Construction: 14-gauge steel chassis & outer coat

Size (L x W x D): 5" x 4.7" x 2"

Power: 9V Adaptor / 80mA center pin negative

Conditions: For use in dry locations only between 5°C and 40°C

Warranty: Radial 3-year, transferable
