Roland Cymbal Pack for DWe Acoustic-Electronic Wireless Convertible Drum Sets:

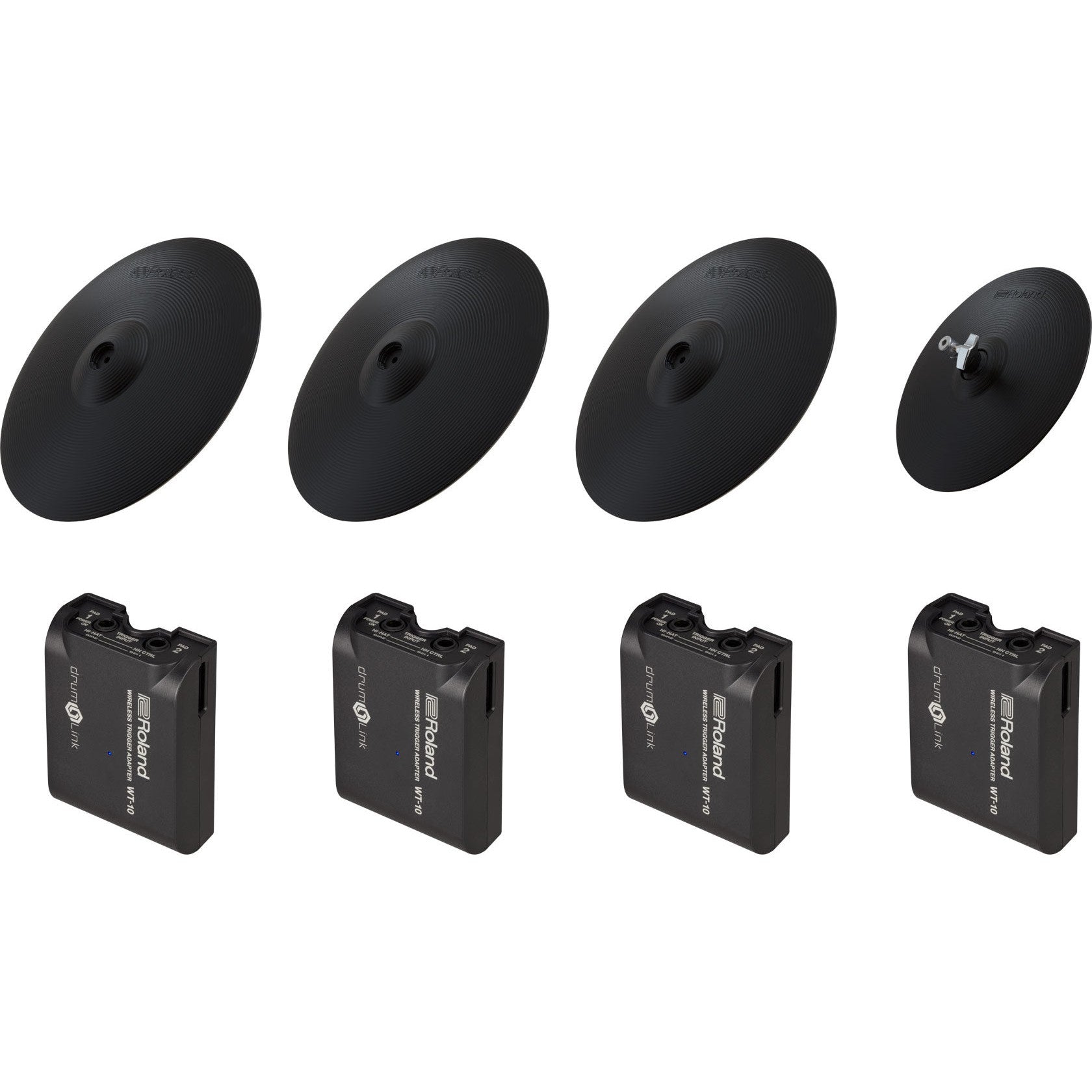

- The 4CY-4WT-01 DrumLink Cymbal Pack provides a ready-made solution for outfitting a Drum Workshop DWe acoustic-electronic wireless convertible drum set with Roland electronic cymbals. Includes three CY-16R-T crash/ride pads, one VH-10 V-Hi-Hat pad, and four WT-10 Wireless Trigger Adapters.

Features:
- Cymbal pack for DWe acoustic-electronic wireless convertible drum sets from Drum Workshop
- Three CY-16R-T crash/ride pads
- One VH-10 V-Hi-Hat pad
- Four WT-10 Wireless Trigger Adapters
- WT-10 units communicate wirelessly with the DWe DrumLink Wireless Hub

Specs:

VH-10: Hi-Hat

Size
12 inches
Trigger
2 (Bow, Edge)
Connectors
TRIGGER OUTPUT jack, CONTROL OUTPUT jack
Accessories
Owner’s Manual, Leaflet "USING THE UNIT SAFELY", Motion sensor unit, Insulating plate, Cable tie

Size and Weight — VH-10: Hi-Hat

Width
314 mm
12-3/8 inches
Depth
314 mm
12-3/8 inches
Height
103 mm
4-1/16 inches
Weight
1.2 kg
2 lbs 11 oz
(Excluding motion sensor unit)

CY-16R-T: Cymbal

Size
16 inches
Trigger
3 (Bow, Bell, Edge)
Connectors
BELL OUTPUT jack, BOW/EDGE OUTPUT jack
Accessories
Owner’s manual, Leaflet "USING THE UNIT SAFELY", Cymbal nut, Felt washer, Stopper, Cable tie

Size and Weight — CY-16R-T: Cymbal

Width
407 mm
16-1/16 inches
Depth
407 mm
16-1/16 inches
Height
56 mm
2-1/4 inches
Weight
1.3 kg / 2 lbs 14 oz

WT-10: Wireless Trigger Adapter

Wireless Format
Proprietary Protocol
Wireless Carrier Frequency
2.4-2.485 GHz ISM Band
Transmission Range
10 m (32 feet) line-of-sight
* May vary due to local conditions
Connectors
Trigger input jacks
(PAD1, PAD2)
Power Supply
Alkaline battery (AA, LR6) x 2
Battery Life
Approx. 6 months
* This can vary depending on the conditions of use.
Accessories
Clamp, Connection cables (0.4 m / 15 inches) x 2, Owner's Manual, Leaflet "USING THE UNIT SAFELY"

Size and Weight — WT-10 (Body)

Width
70 mm
2-13/16 inches
Depth
31 mm
1-1/4 inches
Height
98 mm
3-7/8 inches
Weight
170 g / 6 oz (including batteries)

Size and Weight — WT-10 (Includes horizontal clamp)

Width
84 mm
3-5/16 inches
Depth
73 mm
2-7/8 inches
Height
98 mm
3-7/8 inches
Weight
225 g / 8 oz (including batteries and clamp)

Clamp Mountable Diameter Size

Clamp Mountable Diameter Size
Φ4.5–32 mm
Φ3/16–1-5/16 inches
