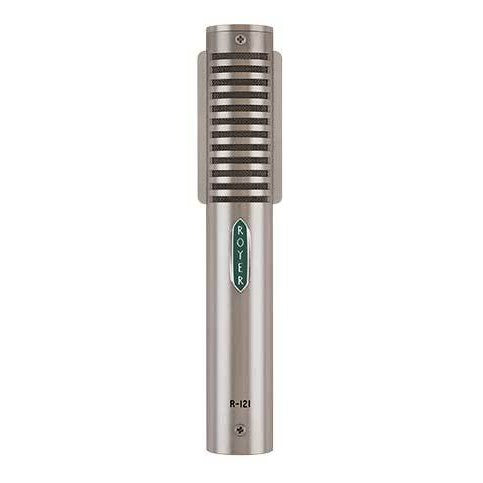

Royer - R-121 Ribbon Mic
$2,059.00
Unit price
/
Unavailable
Steve's Code: 17216
By Royer
Couldn't load pickup availability
Description
Features
High SPL Capabilities
No internal active electronics to overload or produce distortion up to maximum SPL rating
Extremely low residual noise
Ribbon element is not affected by heat or humidity
Absence of high frequency phase distortion
Equal sensitivity from front or back of element
Consistent frequency response regardless of distance
Technical Specifications
Acoustic Operating Principle: Electrodynamic pressure gradient
Polar Pattern: Figure-8
Generating Element: 2.5-micron aluminum ribbon
Magnets: Rare Earth Neodymium
Frequency Response: 30 -15,000 Hz +/- 3dB
Sensitivity: -47 dBv Re. 1v/pa
Output Impedance: 300 Ohms @ 1K (nominal)
Rated Load Impedance: >1500 Ohms @ 300 Ohms
Maximum SPL: >135dB @ 20 Hz
Output Connector: Male XLR 3 pin (Pin 2 Hot)
Dimensions: 155.7mm L, 25mm W (6.13" L, 1" W)
Finish: Dull Satin Nickel/Matte Black Chrome optional
High SPL Capabilities
No internal active electronics to overload or produce distortion up to maximum SPL rating
Extremely low residual noise
Ribbon element is not affected by heat or humidity
Absence of high frequency phase distortion
Equal sensitivity from front or back of element
Consistent frequency response regardless of distance
Technical Specifications
Acoustic Operating Principle: Electrodynamic pressure gradient
Polar Pattern: Figure-8
Generating Element: 2.5-micron aluminum ribbon
Magnets: Rare Earth Neodymium
Frequency Response: 30 -15,000 Hz +/- 3dB
Sensitivity: -47 dBv Re. 1v/pa
Output Impedance: 300 Ohms @ 1K (nominal)
Rated Load Impedance: >1500 Ohms @ 300 Ohms
Maximum SPL: >135dB @ 20 Hz
Output Connector: Male XLR 3 pin (Pin 2 Hot)
Dimensions: 155.7mm L, 25mm W (6.13" L, 1" W)
Finish: Dull Satin Nickel/Matte Black Chrome optional
