A Tribute to 2 of the Greatest Mid-Gain Amp-Inspired Circuits of All Time Together in 1 Pedal

2 Sides, 2 Classic Pedals, Legendary Amp Tones:

- The Throne Of Tone is a tribute to not 1, but 2 extremely sought-after overdrive pedals based on a classic amplifier recording in the late 1960s. 25 years after Blues Breakers With Eric Clapton changed tone chasing forever, a now-classic amp-in-a-box style pedal was launched and set a new standard in transparent amp-like overdrive tones. From that original pedal, a modified, 2-sided boutique OD would emerge over a decade later and change the hierarchy of guitar overdrive for good. The original pedals used by artists like John Mayer, Gary Clark Jr, and John Petrucci are known to blend in with any rig, or transform clean tones into completely different tone stacks. Offering these 2 legendary circuits in 1 pedal with unprecedented combinations, Throne of Tone delivers all of the tonal bliss of the vintage originals with critical features and controls easily accessible at all times.

Dual Voicings, Unrivaled Combos, Rig-Ready Controls:

- Throne Of Tone is all about unmatched control and timeless tone. First and foremost, the Throne Of Tone accurately delivers the unique character of both original pedals with boutique gain and drive modifications - on each side! The voicing selector switches between "Blues" (early classics) and "King" (boutique favorite). A gain selector adds the boutique high/low-gain mod, while the drive mode lets each side run as an OD, Distortion, or Boost. Unique to this pedal, each side includes a presence knob for shaping upper mids when tones get muddy. Global voltage doubling increases headroom, while the FX Order Swap instantly changes effect sequence. A top-mounted send/return jack allows inserting pedals or chains between the 2 sides.

Applications:

- Rhythm Tone | Lower Gain, Dynamic Playing: Set 1 side to a lower gain for dynamic melodies and embellishments
- Riff Tones | Cranked Combo Tone: Set 1 side to mid-gain mode for cranked-combo amp tones on riffs & leads
- Solo Tones | Stacked Overdrive for Solos: Stack 2 sides of the pedal to create a mid-gain OD with a boost for searing solo work
- Boost Tones | Solo/Boost Tones: Engage the voltage doubler and set the pedal to boost for clean and solo boosts

Components:

Controls, Controls, Controls
- The WA-TOT truly delivers all of the possible options in this "breaking" style of overdrive. The controls encompass both classic vintage/boutique pedal styles, and add external controls that cover many of the most famous modifications by boutique revisions over the years.

2 Voicings, 2 Op-Amp Flavors
- Like the original pedals, most of the WA-TOT circuit path is the same regardless of "King" or "Blues" voicing, the op-amp ICs set the stage for the nuances and differences. The "King" voice uses the JRC4580 op-amps while the "Blues" setting leverages the tried and true TL072. The character differences are especially noticeable in "Boost" mode.

Premium Components for Clipping & Power
- WA-TOT uses premium clipping diodes to provide cascading distortion across multiple drive modes. The dual switch cap voltage doubler allows the WA-TOT to deliver even higher headroom in boost mode without having to open the pedal up to engage the modification.

Hand-Tested, Elite Build Quality
- Every single WA-TOT overdrive is meticulously hand-inspected and tested at Warm HQ in Austin, TX by real musicians and engineers with a passion for superior sound.

Technical Specifications:

Product Description & External Specs

- Model: WA-TOT
- A Tribute to 2 of the Greatest Mid-Gain Amp-Inspired Circuits of All Time Together in 1 Pedal
- Dual-Sided British-Inspired Overdrive with Multiple Voicings, Gain Levels, and Drive Modes Plus Added Presence & Voltage Boost Control

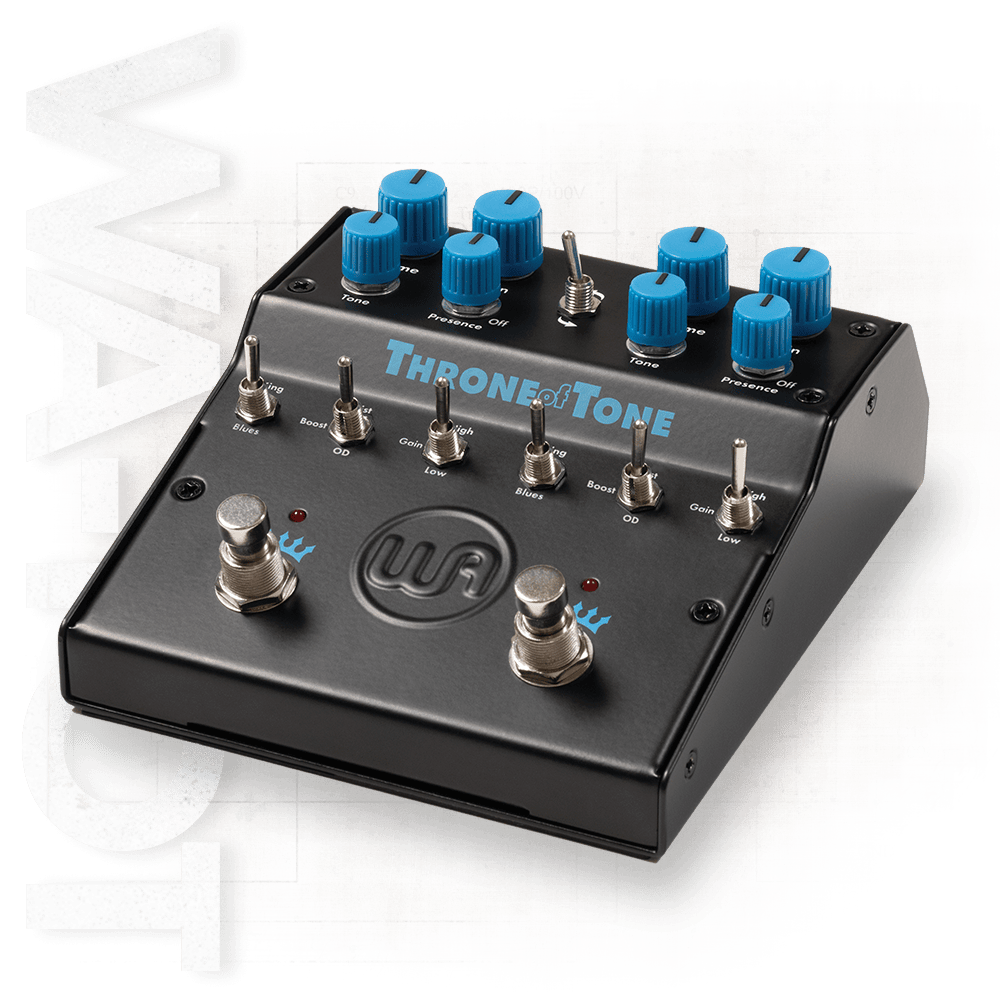

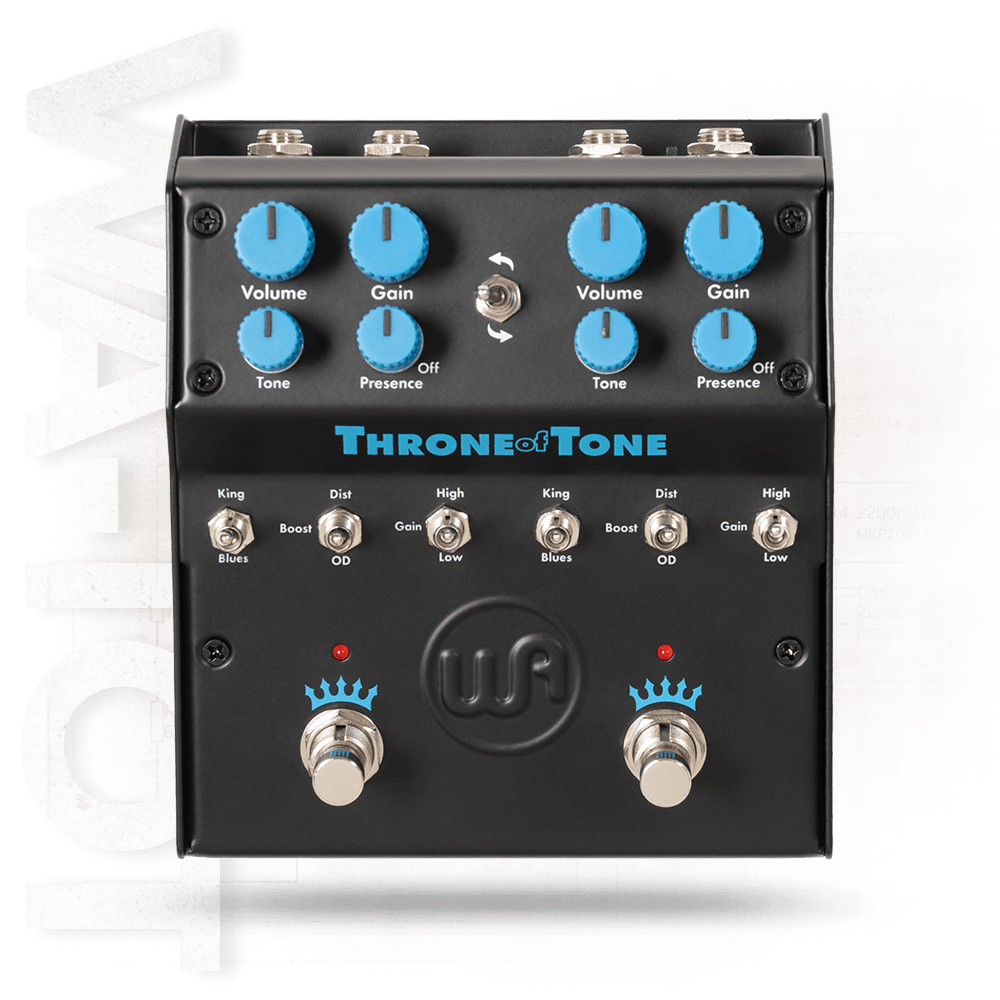

- Controls Per-Side: Volume | Gain | Tone | Presence | Voicing Select | Drive Mode Select | Gain Level Select | On/Off || Global: Voltage Boost | FX Order Swap

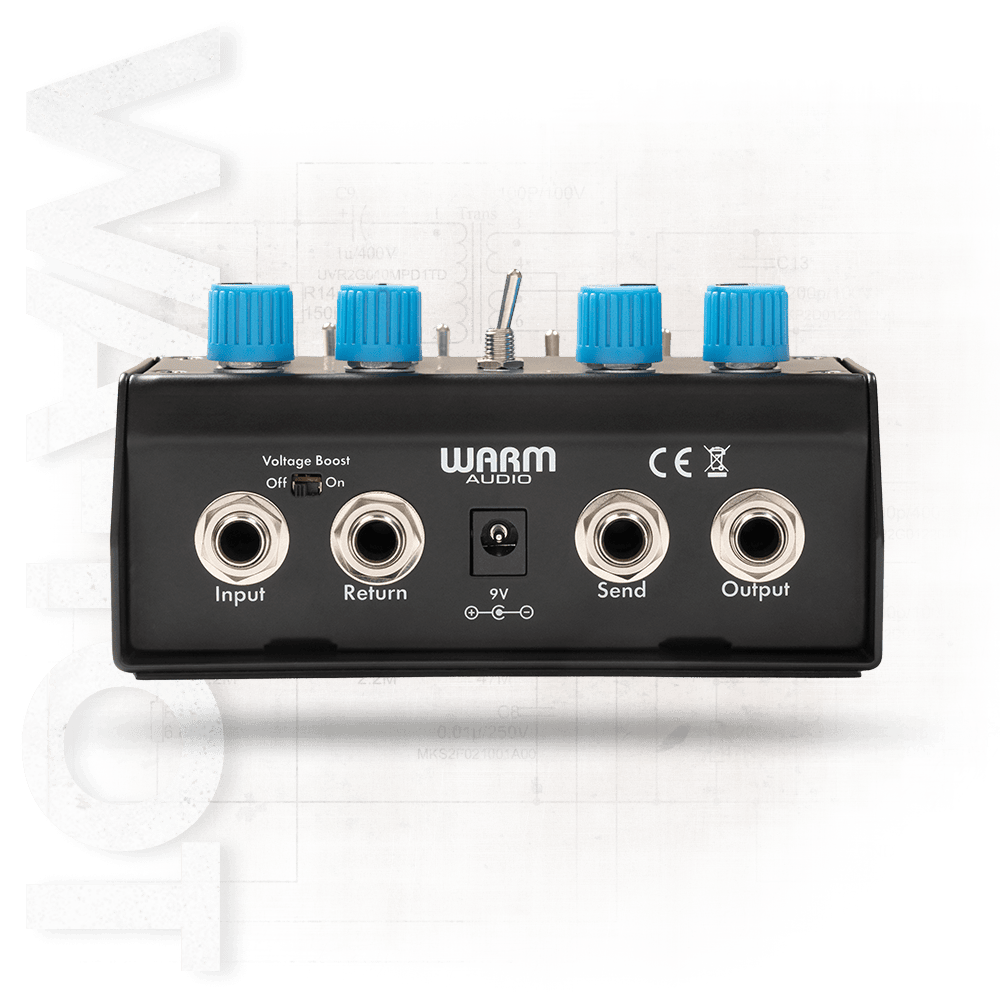

- Jacks: 1/4" Mono (Single) Input & Output | Unbalanced Send & Return Jacks | 9-V Center-Negative Power
- Dimensions (W x H x D): 6.75" x 5" x 2.63" | Weight: 2.4 lb
- 5-Year Warranty

Components & Internal Specs

- Components: 4 x IC's (Including JRC4580 and TL072 Op-Amps) | 24 x Diodes | Dual Switch Cap Voltage Doubler Supply
- Power Consumption: 24 mA Standard Voltage | 43 mA Boosted
- Input Sensitivity: 1 MΩ
- Output Level (Max): +7.1 dBu @ 9 V | +14.6 dBu @ 18 V
