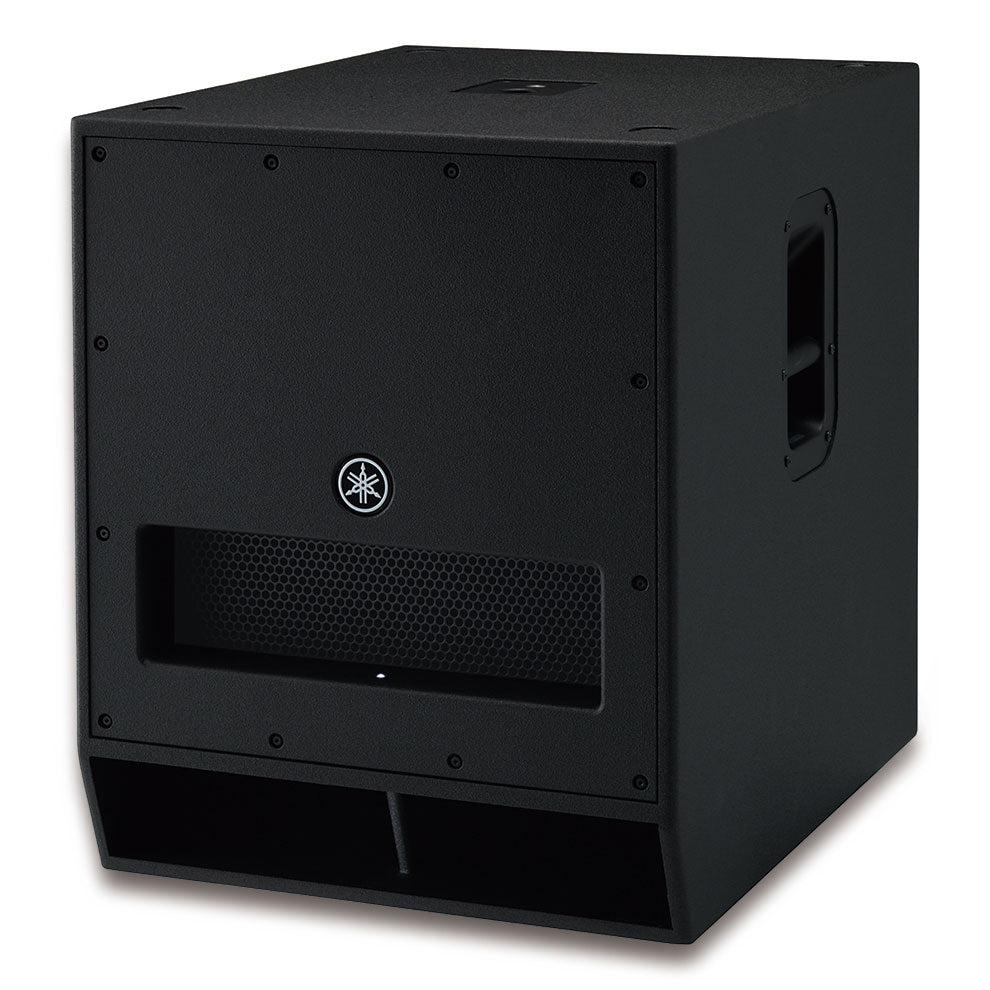

Yamaha - DXS18 18” Subwoofer

$1,999.99
Steve's Code: 57551
Barcode: 889025101103
By Yamaha

Description

The new DXS 18 achieves best in class SPL of up to 136dB and delivers the lowest frequency 32Hz in the lineup. Equipped with a band-pass type enclosure and high power handling 4-inch voice coil magnet that drives the 18-inch woofer, the Class-D amplifier delivers 1020W of power with exceptional clarity and accuracy.




General specifications











































































Speaker type 18" Powered subwoofer, Band-pass type
Frequency range (-10dB) 32Hz – 120Hz
Components LF 18" cone, Voice Coil:4"
Output power Dynamic:1020W / Continuous: 800W
Maximum output level (1m; on axis) 136dB SPL
I/O connectors INPUT: XLR3-31 x2 , THRU: XLR-3-32 x 2(THROUGH or HPF POST)
Processors D-XSUB: BOOST, XTD LF, NORMAL
Cooling Natural convection
Power requirements 100V – 240V, 50Hz/60Hz
Power consumption 100W
Pole socket 35 mm (depth 80 mm) & M20 (threaded depth 25 mm)
Dimensions W 563mm (22.2")
H 683mm (26.8")
D 721mm (28.4")
Net weight 49.7kg (110lbs)
Others Material: Plywood (LINE-X®, Black)



















YDR101116
