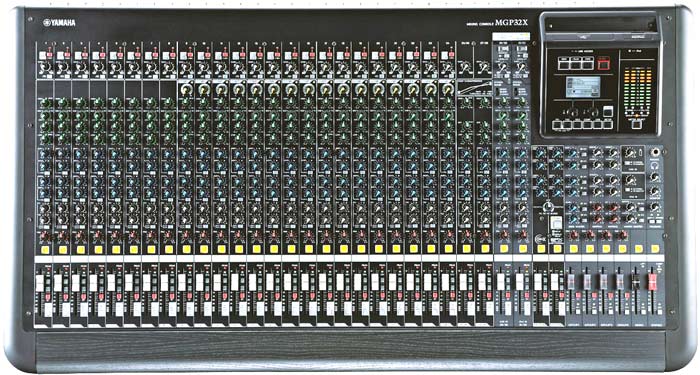

YAMAHA MGP32X ANALOG MIXING CONSOLE

Specs

Outline

Mixing capability

• Mixing channels 32 Line Inputs (24 mono and 4 stereo)


• GROUP 4 GROUP Buses + ST Bus


• AUX 6 AUX Sends + 2 FX Sends


• MATRIX 1 Matrix out


• On-board processors FX1:REV-X(8 PROGRAM, PARAMETER control)/ FX2:SPX(16 PROGRAM, PARAMETER control)


• I/O Mic inputs MIC: 24 (INPUTS HPF: 100Hz 12dB/oct)


• Phantom power 48V phantom power per channel


• Line inputs LINE: 24 mono + 4 stereo, CH INSERT: 24 RETURN: 1 stereo


• Digital I/O USB Device, iPod / iPhone*

General specifications

• Total harmonic distortion 0.02% (20Hz-20kHz@ +14dBu)


• Frequency response +0.5/-1.0dB 20Hz - 20kHz, refer to the nominal output level @1kHz


• Hum & noise level Equivalent input noise -128 dBu Equivalent Input Noise


• Residual output noise -94 dBu Residual Output Noise


• Crosstalk -74dB @ 1kHz


• Power requirements 100-240V 50Hz/60Hz


• Power consumption 86W max


• Dimensions W 1,027mm (40.4")


• H 169mm (6.7")


• D 565mm (22.2")

* iPod / iPhone* not included
