Meet Your Other Half:

A New Generation
- The original Revstar guitars launched in 2015 — our first new electric guitar series in more than a decade. A completely refreshed lineup was introduced in 2022.

Music and Motors
- The Revstar style is inspired by café racer motorcycles — stripped-down performance machines that were customized to reflect the personality of their riders.

Modern. Classic.
- Revstar balances Japanese innovation and traditional artisanship. Modern features enhance playability, versatility, and tone, while the design references classic Yamaha electric guitars going back to 1966.

Hanko Mark
- Used in place of a signature in Japan, the hanko stamp on every Revstar guitar is our seal of approval. Standard models feature the "Revstar" hanko.

Revstar Standard:

The New Standard
- With 2 available pickup configurations, 5-way switching, and the Focus Switch passive boost, the new Revstar Standard is all about versatility.

Chambered Body with Acoustic Design
- Revstar Standard guitars feature chambered bodies designed to sculpt tone and reduce weight, with carbon reinforcement in the neck to improve vibration transfer.

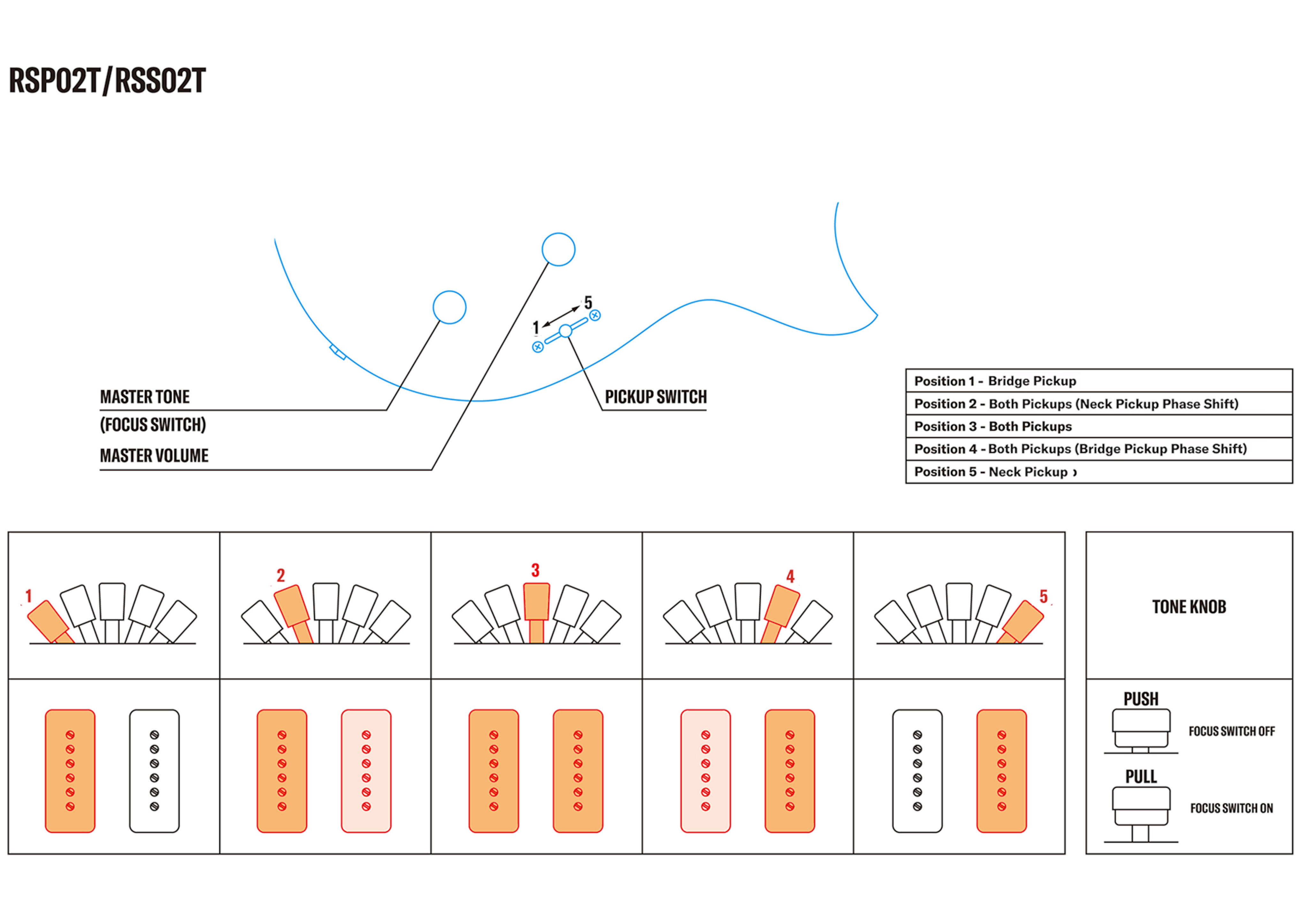

5-Way Switching
- With the same 5-way switching as Revstar Professional, the subtle phase shift on positions 2 and 4 offers a fresh take on classic "in-between" sounds.

Focus Switch
- The push/pull Tone control activates a passive boost with an effect similar to overwound pickups — darker highs, increased mids and lows, and an aggressive character.

Choice of Pickups
- RSS02T offers P90-style single-coils. All pickups are custom designed by Yamaha and use Alnico V magnets for powerful tone.

Product Information:

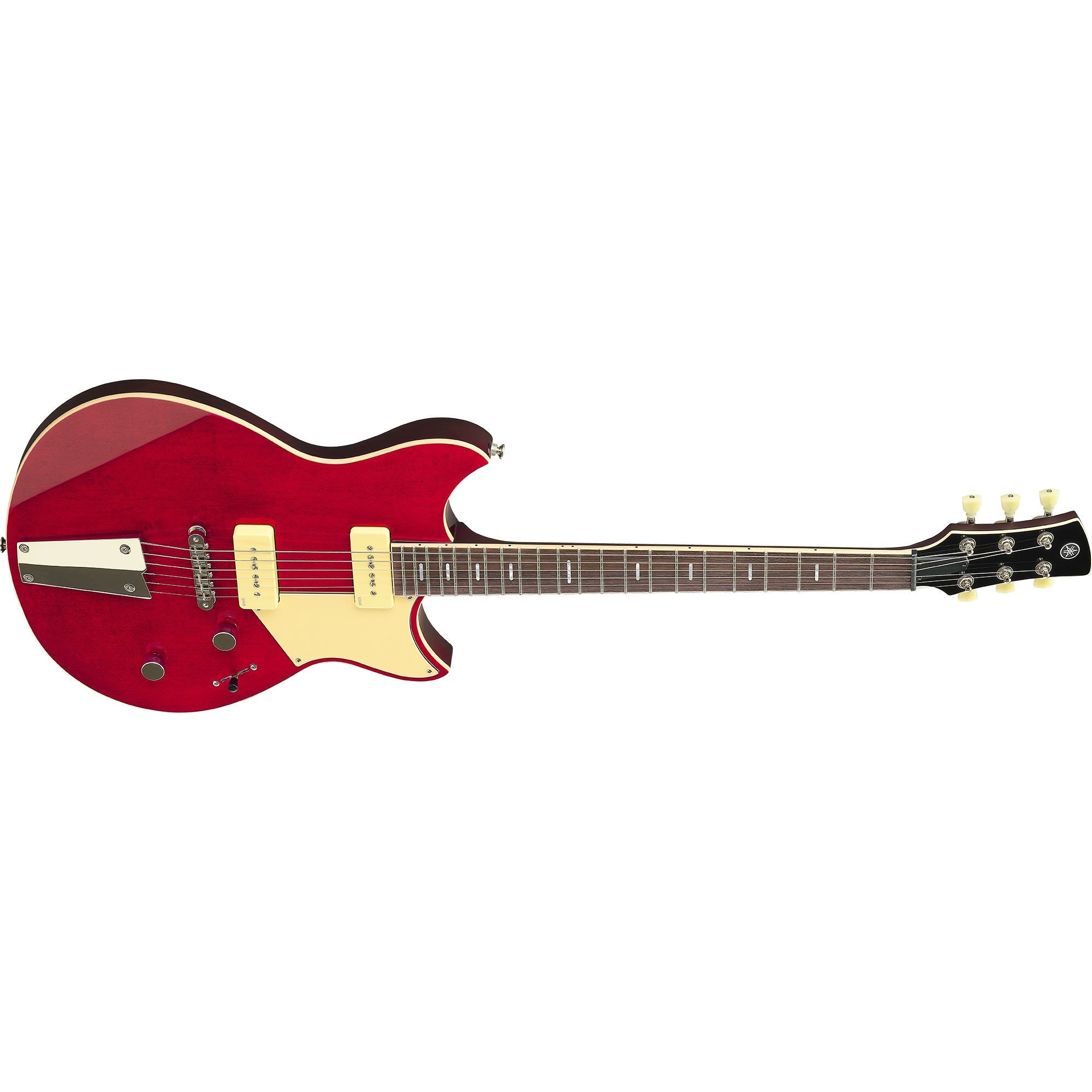

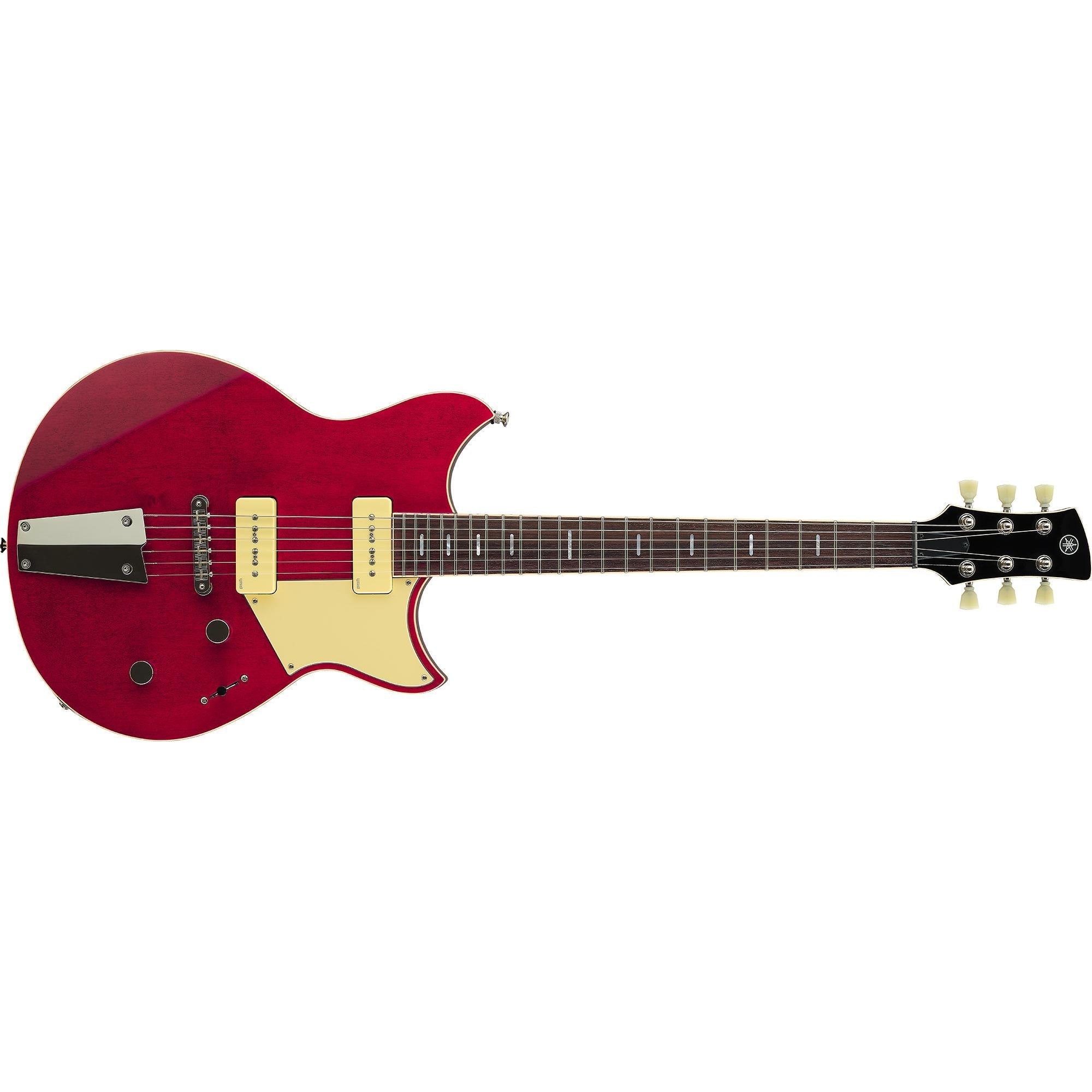

This Revstar Standard features P90-style single-coil pickups with 5-way switching and the Focus Switch boost, with a custom racing tailpiece.

- Café Racer-Inspired Finish
- Chambered Maple and Mahogany Body
- Carbon-Reinforced 3-Piece Mahogany Neck
- 2 P90-Style Pickups
- 5-Position Pickup Selector
- Passive Focus Switch
- Deluxe Gig Bag Included

Specs:

General
- Construction: Set-in
- Scale Length: 24-3/4" (628.6 mm)

Body
- Body Materials: Top: Maple | Back: Chambered Mahogany
- Body Finish: Gloss Polyurethane

Neck
- Neck Materials: 3-Piece Mahogany | Carbon Reinforcement
- Neck Finish: Satin Polyurethane
- Fingerboard Materials: Rosewood
- Fingerboard Radius: 12" (304.8 mm)
- Fret Wire: Jumbo Stainless Steel
- Number of Frets: 22
- Nut Materials: PPS
- Neck Width @ 0th | 12th Fret: 41.9 mm | 52.0 mm
- Thickness @ 1st | 12th Fret: 21.0 mm | 23.9 mm

Electronics
- Neck Pickup: VP5n: P90-Type Single Coil  / Alnico V
- Middle Pickup: None
- Bridge Pickup: VP5b: P90-Type Single Coil / Alnico V
- Controls: Master Volume | Master Tone (Push-Pull "Focus Switch")
- Pickup Switch: 5-Position Lever Switch

Hardware
- Bridge: Tune-O-Matic
- Tremolo Arm: None
- String Spacing: 10.5 mm
- Tailpiece: Racing Tailpiece
- Tuning Machines: Die-Cast
- Pickguard: 3-Ply Cream

Others
- String Gauge: Elixir Nanoweb Light (0.010 - 0.046)
- Case: Gig Bag
- Special Features: None
