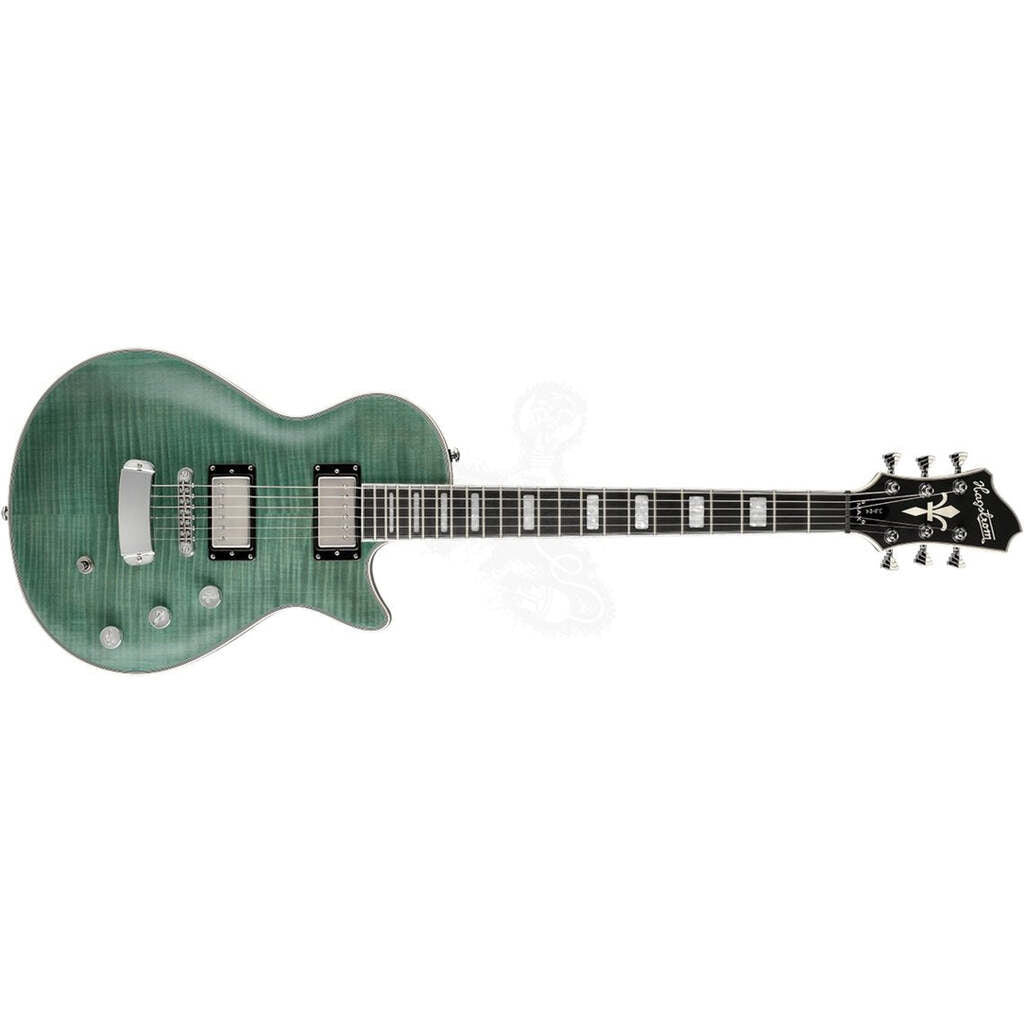

Hagstrom Ultra Max

The Ultra Max shares the same small body concept of the Ultra Swede, yet with a slightly larger proportioned mahogany body topped with a thick custom carved flame maple top. The body joins to a mahogany set neck utilizing a mortise and tenon neck joint with a 25.50” scale length, which naturally features our H-Expander™ truss-rod and Resinator™ fingerboard. Its sleek and “ultra-comfortable fast neck” is paralleled with our Custom 60 Alnico-5 pickups with their eloquent Aluminum Brushed covers, delivering the cutting voice that this instrument demands.

Mighty Punch and Hot Sizzle

Each of the Ultra Max’s specially wound Custom 60 humbucking pickups utilizes Nylon coated wire united with an Alnico 5 magnet (unmistakably familiar to the “Custom 58”). However, the Custom 60 ultimately packs a mighty punch and hot sizzle compared to the vintage voiced Custom 58. Each pickup is controlled with its own independent Volume pot featuring our standard R/C circuit on each potentiometer, to help focus on its cleaner tones with a slight turn of the pot. It’s single Master Tone also features a dual coil split, using its push/pull tone configuration to allow for players to switch from “Full Humbucker Tilt” to “Spanky Single Coil Clean” in a heartbeat.

Drop Tunings, Flexibilty and Playability

The Ultra Max combines all of the power, long sustain, clarity and attack, as found with the “Ultra Swede”, yet offers players a fresh tonal pallet with additional flexibility and comfortable playability with its compact body. With its longer 25.50” scale length the Ultra Max handles drop tunings with ease, where players looking for a slightly slimmed body with a searing tone will have found their long-term mate.

Ultra Max Specs

Body

Material: Mahogany

Top: Custom Carved Flame Maple

Style: Single Cutaway

Binding: White Perloid

Neck

Joint: Set Neck

Material: Maple

Profile: UltraSlim „D”

Truss Rod: H-Expander™

Fingerboard/Nut

Material: Resinator™ Fingerboard /

Radius: 15"

Inlays: Pearloid Block

Frets: 22 Medium Jumbo

Scale Length: 25.50" (648 mm)

Nut: GraphTech Black Tusq XL

Nut Width: 43 mm

Electronics

Pickups: 2 x Custom 60 AlNiCo-5 Humbucker

Brushed Aluminum Cover

Pickup Selector: 3-Way Toggle Switch

Controls: 1 x Tone Control with Push-Pull Coil Split

Parts

Bridge: Long Travel Tune-O-Matic

Hagstrom Sustain Block Tailpiece

Tuning Keys: Hagstrom Design 15:1

Strings: D'Addario (10-46)
